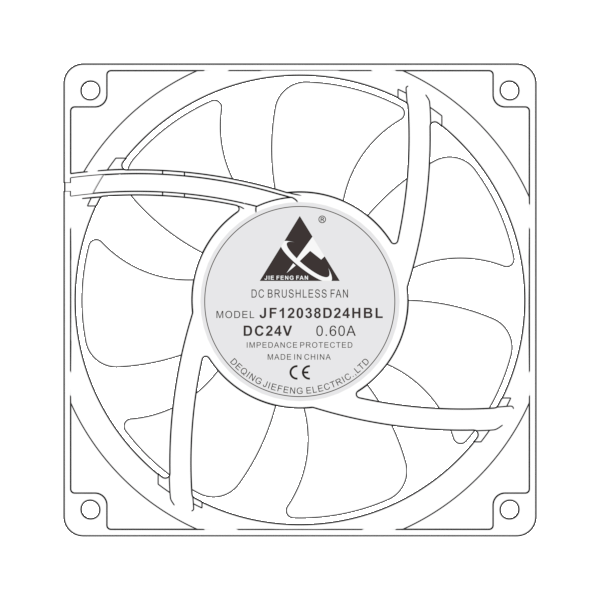

JF12038D24HBL-7C
JF12038D24HBL-7C from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM an…
Product overview
Product dimension drawing： Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF12038D12LBL 12 8.5～13.5 0.30 3.60 2500 2.73 96.55 5.92 0.23 43.4 JF12038D12LMBL 12 8.5～13.5 0.60 7.20 3000 3.15 111.26 8.66 0.34 47.7 JF12038D12MBL 12 8.5～13.5 0.90 10.80 3500 3.74 132.14 11.94 0.47 52.8 JF12038D12LHBL 12 8.5～13.5 1.20 14.40 4000 4.33 152.89 15.47 0.61 54.5 JF12038D12MHBL 12 8.5～13.5 1.50 18.00 4500 4.79 169.37 19.74 0.78 58.1 JF12038D12HBL 12 8.5～13.5 1.80 21.60 5000 5.38 189.97 24.41 0.96 62.1 JF12038D12VHBL 12 8.5～13.5 2.00 24.00 5500 5.94 209.92 29.29 1.15 65.2 JF12038D24LBL 24 18～26.5 0.15 3.60 2500 2.73 96.55 5.92 0.23 43.4 JF12038D24LMBL 24 18～26.5 0.30 7.20 3000 3.15 111.26 8.66 0.34 47.7 JF12038D24MBL 24 18～26.5 0.45 10.80 3500 3.74 132.14 11.94 0.47 52.8 JF12038D24LHBL 24 18～26.5 0.60 14.40 4000 4.33 152.89 15.47 0.61 54.5 JF12038D24MHBL 24 18～26.5 0.75 18.00 4500 4.79 169.37 19.74 0.78 58.1 JF12038D24HBL 24 18～26.5 0.90 21.60 5000 5.38 189.97 24.41 0.96 62.1 JF12038D24VHBL 24 18～26.5 1.00 24.00 5500 5.94 209.92 29.29 1.15 65.2 JF12038D48LBL 48 36～54 0.75 3.60 2500 2.73 96.55 5.92 0.23 43.4 JF12038D48LMBL 48 36～54 0.15 7.20 3000 3.15 111.26 8.66 0.34 47.7 JF12038D48MBL 48 36～54 0.23 10.80 3500 3.74 132.14 11.94 0.47 52.8 JF12038D48LHBL 48 36～54 0.30 14.40 4000 4.33 152.89 15.47 0.61 54.5 JF12038D48MHBL 48 36～54 0.38 18.00 4500 4.79 169.37 19.74 0.78 58.1 JF12038D48HBL 48 36～54 0.45 21.60 5000 5.38 189.97 24.41 0.96 62.1 JF12038D48VHBL 48 36～54 0.50 24.00 5500 5.94 209.92 29.29 1.15 65.2
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 金属框
- housingMaterial
- ADC/12
- surfaceTreatment
- 电泳
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 7
- overallSize
- 120.0*120.0*38.6 MM
- mountingSize
- 105.0*105.0 MM
- mountingHoleDiameter
- M5.0
- Ventilation Opening Size
- φ113.5 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 直流
- ratedVoltage
- 12V/24V/48V
- ratedPower
- 3.6/24.0 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 2500/5500 RPM
- airFlow
- 96.55/209.92 CFM
- airPressure
- 0.23/1.15 mmH₂O
- noiseLevel
- 65.2 dBA
- protectionGrade
- IP43
- lifeSpan
- 50000 h
- weight
- 265.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
