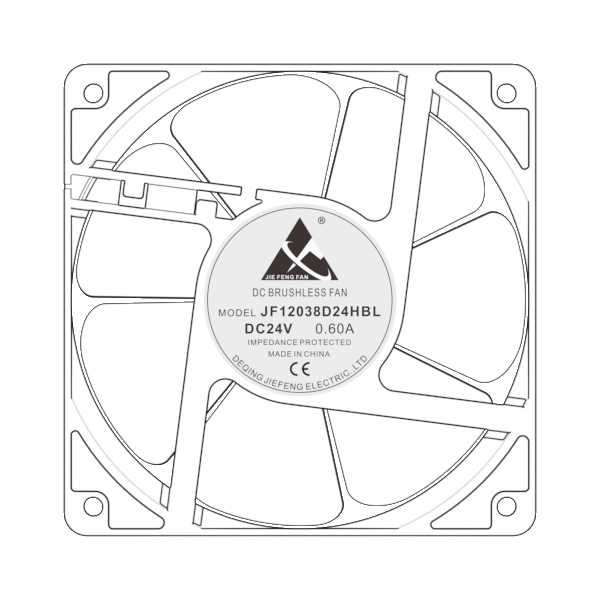

JF12038D24HBL-7B
JF12038D24HBL-7B from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM an…
Product overview
Product dimension drawing： Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF12038D12LBL 12 8.5～13.5 0.45 5.40 2500 2.54 89.58 5.36 0.21 40.0 JF12038D12LMBL 12 8.5～13.5 1.45 17.40 3500 3.63 128.40 10.39 0.41 49.0 JF12038D12MBL 12 8.5～13.5 2.25 27.00 4500 4.64 164.09 16.87 0.66 55.8 JF12038D12LHBL 12 8.5～13.5 3.00 36.00 5500 5.62 198.60 24.08 0.95 61.3 JF12038D24LBL 24 18～26.5 0.23 5.40 2500 2.54 89.58 5.36 0.21 40.0 JF12038D24LMBL 24 18～26.5 0.73 17.40 3500 3.63 128.40 10.39 0.41 49.0 JF12038D24MBL 24 18～26.5 1.13 27.00 4500 4.64 164.09 16.87 0.66 55.8 JF12038D24LHBL 24 18～26.5 1.50 36.00 5500 5.62 198.60 24.08 0.95 61.3 JF12038D48LBL 48 36～54 0.08 3.60 2500 2.54 89.58 5.36 0.21 40.0 JF12038D48LMBL 48 36～54 0.23 10.80 3500 3.63 128.40 10.39 0.41 49.0 JF12038D48MBL 48 36～54 0.38 18.00 4500 4.64 164.09 16.87 0.66 55.8 JF12038D48LHBL 48 36～54 0.50 24.00 5500 5.62 198.60 24.08 0.95 61.3
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 7
- overallSize
- 119.7*119.7*37.5 MM
- mountingSize
- 105.0*105.0 MM
- mountingHoleDiameter
- Φ4.3
- Ventilation Opening Size
- φ115.5 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 含油/滚珠
- powerType
- 直流
- ratedVoltage
- 12V/24V/48V
- ratedPower
- 5.4/24.0 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 2500/5500 RPM
- airFlow
- 89.58/198.60 CFM
- airPressure
- 0.21/0.95 mmH₂O
- noiseLevel
- 61.3 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000/50000 h
- weight
- 245.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
