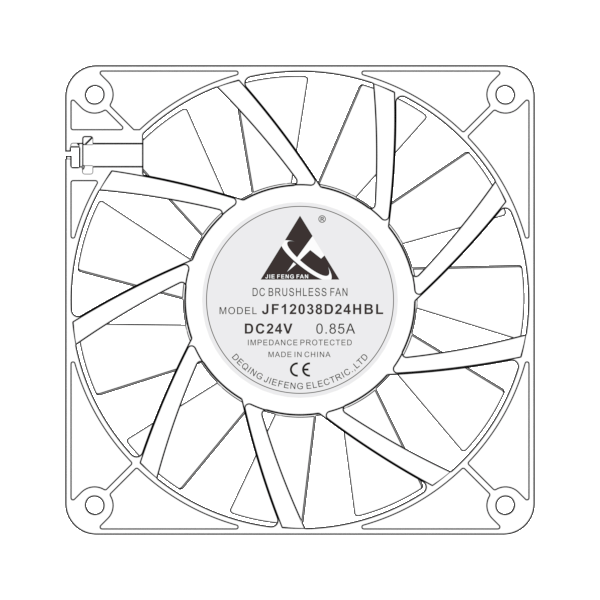

JF12038D24HBL-11
JF12038D24HBL-11 from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM an…
Product overview
Product dimension drawing： Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF12038D12LBL 12 8.5～13.5 0.35 4.20 2500 3.13 110.58 11.73 0.46 54.5 JF12038D12MBL 12 8.5～13.5 1.38 16.60 4500 4.52 159.70 18.77 0.74 59.7 JF12038D12HBL 12 8.5～13.5 2.40 28.80 5000 5.75 203.08 27.53 1.08 68.8 JF12038D12HHBL 12 8.5～13.5 3.00 36.00 5500 7.10 250.76 37.72 1.49 74.0 JF12038D24LBL 24 18～26.5 0.18 4.20 2500 3.13 110.58 11.73 0.46 54.5 JF12038D24MBL 24 18～26.5 0.70 16.60 4500 4.52 159.70 18.77 0.74 59.7 JF12038D24HBL 24 18～26.5 1.20 28.80 5000 5.75 203.08 27.53 1.08 68.8 JF12038D24HHBL 24 18～26.5 1.50 36.00 5500 7.10 250.76 37.72 1.49 74.0 JF12038D48LBL 48 36～54 0.09 4.20 2500 3.13 110.58 11.73 0.46 54.5 JF12038D48MBL 48 36～54 0.35 16.60 4500 4.52 159.70 18.77 0.74 59.7 JF12038D48HBL 48 36～54 0.60 28.80 5000 5.75 203.08 27.53 1.08 68.8 JF12038D48HHBL 48 36～54 0.75 36.00 5500 7.10 250.76 37.72 1.49 74.0
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 增压塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 11
- overallSize
- 120.0*120.0*37.7 MM
- mountingSize
- 105.0*105.0 MM
- mountingHoleDiameter
- Φ4.3
- Ventilation Opening Size
- φ117.0 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 直流
- ratedVoltage
- 12V/24V/48V
- ratedPower
- 4.2/36.0 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 2500/5500 RPM
- airFlow
- 110.58/250.76 CFM
- airPressure
- 0.46/1.49 mmH₂O
- noiseLevel
- 74.0 dBA
- protectionGrade
- IP43
- lifeSpan
- 50000 h
- weight
- 400.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
