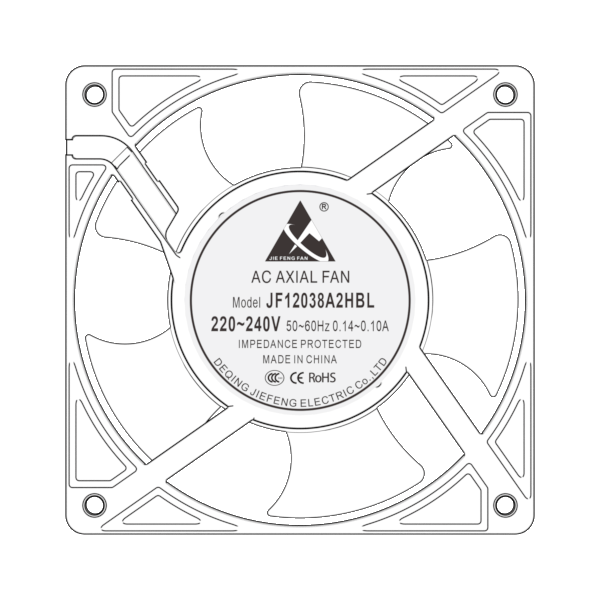

JF12038A2HBL/T-5（new）
JF12038A2HBL/T-5（new） from Jiefeng Electric. AC Axial Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OE…
Product overview
Product dimension drawing： Unit：mm Specification Table: Model Freq Bearing Voltage Current Power Speed Airflow Pressure Noise 产品编号 Hz Style VAC AMP Watt RPM CFM mm H ² O dBA JF12038A1HSL 50/60 Sleeve 110 0.23/0.21 25.3/23.1 2600/3050 92/97 6.3/7.3 42/49 JF12038A1HBL 50/60 Ball 110 0.23/0.21 25.3/23.1 2650/3100 93/98 6.6/7.5 43/47 JF12038A2HSL 50/60 Sleeve 220 0.12/0.10 26.4/22.0 2600/3050 92/97 6.3/7.3 42/49 JF12038A2HBL 50/60 Ball 220 0.12/0.10 26.4/22.0 2650/3100 93/98 6.6/7.5 43/47 JF12038A3HSL 50/60 Sleeve 380 0.08/0.07 30.4/26.6 2600/3050 92/97 6.3/7.3 42/49 JF12038A3HBL 50/60 Ball 380 0.08/0.07 30.4/26.6 2650/3100 93/98 6.6/7.5 43/47
Product specifications
- productType
- 轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通铝框
- housingMaterial
- ADC/12
- surfaceTreatment
- 塑粉喷涂
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 5/7
- overallSize
- 120.3*120.3*38.6 MM
- mountingSize
- 105.0*105.0 MM
- mountingHoleDiameter
- Φ4.3/M5.0
- Ventilation Opening Size
- φ115.5 MM
- motorType
- 罩极电机
- insulationClass
- B级
- driveType
- 含油/滚珠
- powerType
- 交流
- ratedVoltage
- 110V/220V/380V
- ratedPower
- 22.0/30.4 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 2600/3100 RPM
- airFlow
- 92/98 CFM
- airPressure
- 0.25/0.30 inch-H₂O
- noiseLevel
- 42/49 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000/50000 h
- weight
- 490.0 g
- wiringMethod
- 引线/插片
- safetyCertification
- 3C/CE/ROHS
- customFunction
- 双电压
