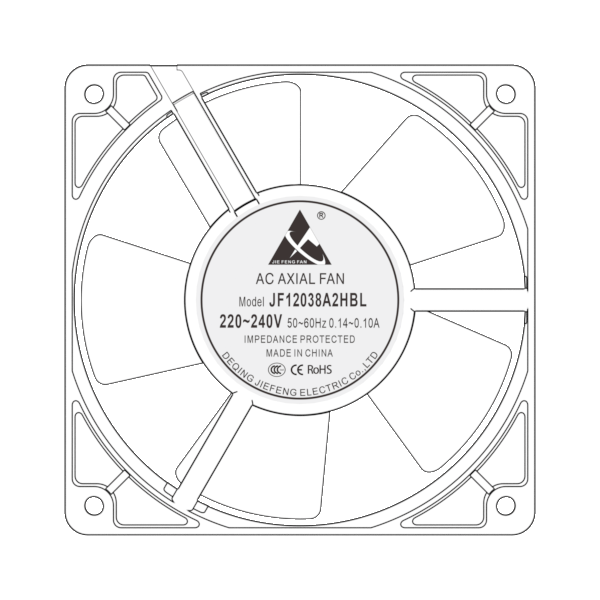

JF12038A2HBL-7M
JF12038A2HBL-7M from Jiefeng Electric. AC Axial Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and …
Product overview
Product dimension drawing： Unit：mm Specification Table: Model Freq Bearing Voltage Current Power Speed Airflow Pressure Noise PART.NO. Hz Style VAC AMP Watt RPM CFM mm H ² O dBA JF12038A1HBL 50/60 Ball 110 0.23/0.21 25.3/23.1 2600/3100 90/95 6.6/7.5 41/45 JF12038A2HBL 50/60 Ball 220 0.12/0.10 26.4/22.0 2600/3100 90/95 6.6/7.5 41/45 JF12038A3HBL 50/60 Ball 380 0.08/0.07 30.4/26.6 2600/3100 90/95 6.6/7.5 41/45
Product specifications
- productType
- 轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通铝框
- housingMaterial
- ADC/12
- surfaceTreatment
- 电泳
- bladeMaterial
- 金属 Q235
- bladeCount
- 5
- overallSize
- 119.3*119.3*38.5 MM
- mountingSize
- 105.0*105.0 MM
- mountingHoleDiameter
- Φ4.3/M5.0
- Ventilation Opening Size
- φ115.5 MM
- motorType
- 罩极电机
- insulationClass
- F级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V/220V/380V
- ratedPower
- 22.8/28.6 W
- workingTemperature
- -30℃~+80℃
- workingHumidity
- 30%~70%RH
- speed
- 2600/2950 RPM
- airFlow
- 110/120 CFM
- airPressure
- 0.29/0.33 inch-H₂O
- noiseLevel
- 45/52 dBA
- protectionGrade
- IP43
- lifeSpan
- 40000 h
- weight
- 569.0 g
- wiringMethod
- 引线
- safetyCertification
- 3C/CE/ROHS
