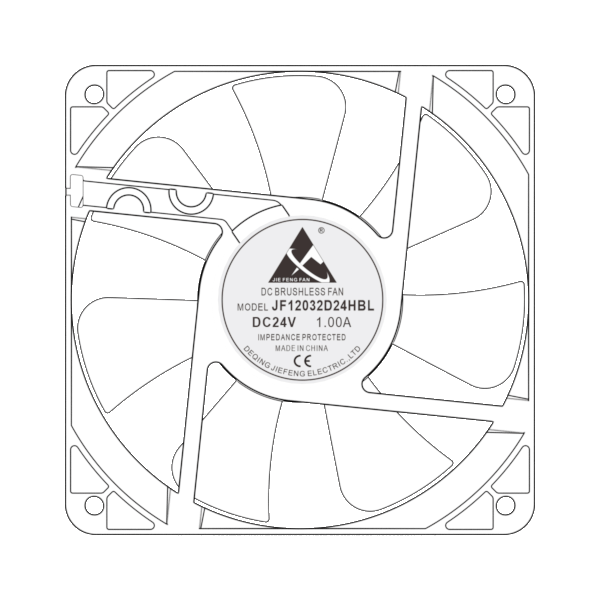

JF12032D24HBL-7
JF12032D24HBL-7 from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and…
Product overview
Product dimension drawing： Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF12032D12LBL 12 8.5～13.5 0.50 6.00 2000 1.73 61.26 3.56 0.14 33.0 JF12032D12LMBL 12 8.5～13.5 0.80 9.60 2500 2.21 78.20 5.59 0.22 38.5 JF12032D12MBL 12 8.5～13.5 1.00 12.00 3000 2.60 91.85 7.37 0.29 43.8 JF12032D12LHBL 12 8.5～13.5 2.00 24.00 3500 3.01 106.44 9.40 0.37 47.9 JF12032D24LBL 24 18～26.5 0.30 7.20 2000 1.73 61.26 3.56 0.14 33.0 JF12032D24LMBL 24 18～26.5 0.50 12.00 2500 2.21 78.20 5.59 0.22 38.5 JF12032D24MBL 24 18～26.5 0.70 16.80 3000 2.60 91.85 7.37 0.29 43.8 JF12032D24LHBL 24 18～26.5 1.00 24.00 3500 3.01 106.44 9.40 0.37 47.9 JF12032D48LBL 48 36～54 0.15 7.20 2000 1.73 61.26 3.56 0.14 33.0 JF12032D48LMBL 48 36～54 0.25 12.00 2500 2.21 78.20 5.59 0.22 38.5 JF12032D48MBL 48 36～54 0.45 21.60 3000 2.60 91.85 7.37 0.29 43.8 JF12032D48LHBL 48 36～54 0.60 28.80 3500 3.01 106.44 9.40 0.37 47.9
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 7
- overallSize
- 119.8*119.8*31.8 MM
- mountingSize
- 105.0*105.0 MM
- mountingHoleDiameter
- Φ4.3
- Ventilation Opening Size
- φ116.5 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 滚珠铜中管
- powerType
- 直流
- ratedVoltage
- 12V/24V/48V
- ratedPower
- 6.0/28.8 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 2000/3500 RPM
- airFlow
- 61.26/106.44 CFM
- airPressure
- 0.14/0.37 mmH₂O
- noiseLevel
- 47.9 dBA
- protectionGrade
- IP43
- lifeSpan
- 50000 h
- weight
- 215.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
