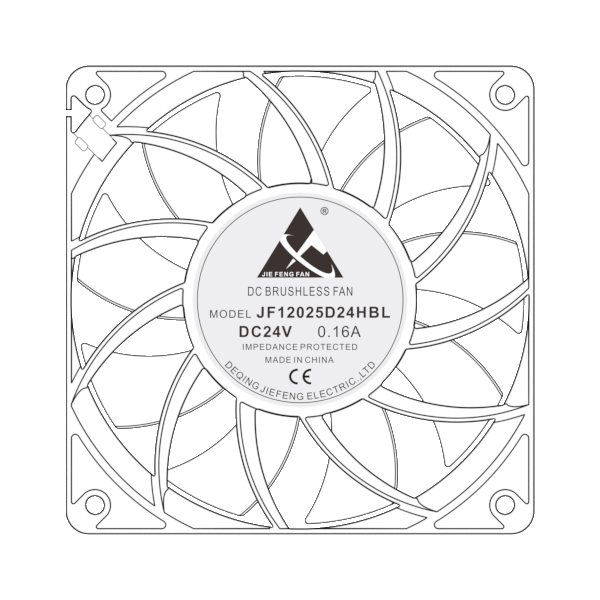

JF12025D24HBL-9B
JF12025D24HBL-9B from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM an…
Product overview
Product dimension drawing： Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF12025D12LBL 12 8.5～13.5 0.54 6.48 3100 2.92 103.12 6.58 0.26 46.6 JF12025D12MBL 12 8.5～13.5 0.62 7.44 3400 3.03 107.13 8.10 0.32 49.6 JF12025D12LHBL 12 8.5～13.5 0.71 8.52 3700 3.66 129.18 9.63 0.38 51.4 JF12025D12MHBL 12 8.5～13.5 0.84 10.08 4000 3.78 133.70 10.54 0.42 53.8 JF12025D12HBL 12 8.5～13.5 1.20 14.40 4500 4.41 155.73 13.72 0.54 57.2 JF12025D24LBL 24 18～26.5 0.30 7.20 3100 2.92 103.12 6.58 0.26 46.6 JF12025D24MBL 24 18～26.5 0.31 7.44 3400 3.03 107.13 8.10 0.32 49.6 JF12025D24LHBL 24 18～26.5 0.36 8.64 3700 3.66 129.18 9.63 0.38 51.4 JF12025D24MHBL 24 18～26.5 0.42 10.08 4000 3.78 133.70 10.54 0.42 53.8 JF12025D24HBL 24 18～26.5 0.60 14.40 4500 4.41 155.73 13.72 0.54 57.2 JF12025D48LBL 48 36～54 0.14 6.72 3100 2.92 103.12 6.58 0.26 46.6 JF12025D48MBL 48 36～54 0.16 7.68 3400 3.03 107.13 8.10 0.32 49.6 JF12025D48LHBL 48 36～54 0.18 8.64 3700 3.66 129.18 9.63 0.38 51.4 JF12025D48MHBL 48 36～54 0.21 10.08 4000 3.78 133.70 10.54 0.42 53.8 JF12025D48HBL 48 36～54 0.30 14.40 4500 4.41 155.73 13.72 0.54 57.2
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 增压塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 9
- overallSize
- 120.5*120.5*25.1 MM
- mountingSize
- 105.0*105.0 MM
- mountingHoleDiameter
- Φ4.3
- Ventilation Opening Size
- φ129.0 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 直流
- ratedVoltage
- 12V/24V/48V
- ratedPower
- 2.16/5.40 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 1500/3000 RPM
- airFlow
- 64.63/107.53 CFM
- airPressure
- 0.08/0.21 mmH₂O
- noiseLevel
- 47.5 dBA
- protectionGrade
- IP43
- lifeSpan
- 50000 h
- weight
- 152.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
