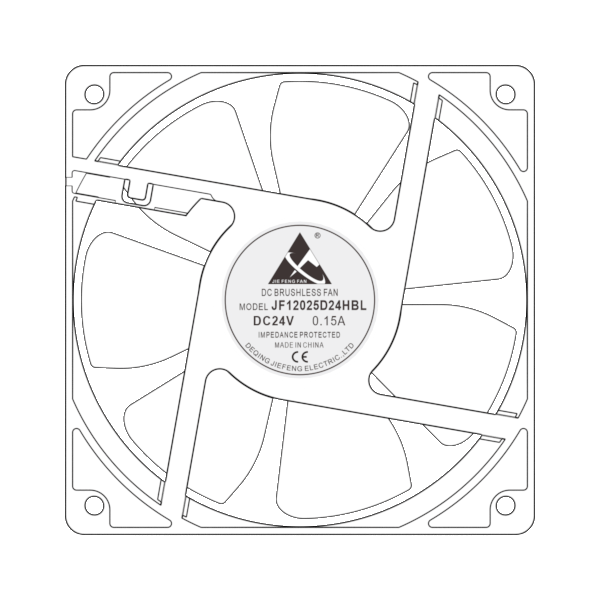

JF12025D24HBL-7B
JF12025D24HBL-7B from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM an…
Product overview
Product dimension drawing： Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF12025D12LBL 12 8.5～13.5 0.30 3.60 2000 1.53 54.19 2.82 0.11 33.3 JF12025D12LMBL 12 8.5～13.5 0.40 4.80 2500 1.91 67.49 4.24 0.17 41.3 JF12025D12MBL 12 8.5～13.5 0.50 6.00 3000 2.34 82.86 5.92 0.23 46.1 JF12025D12LHBL 12 8.5～13.5 0.60 7.20 3500 2.69 95.13 7.57 0.30 50.6 JF12025D12MHBL 12 8.5～13.5 0.70 8.40 4000 3.06 108.29 9.42 0.37 53.0 JF12025D12HBL 12 8.5～13.5 0.80 9.60 4500 3.43 121.06 11.30 0.45 57.1 JF12025D24LBL 24 18～26.5 0.15 3.60 2000 1.53 54.19 2.82 0.11 33.3 JF12025D24LMBL 24 18～26.5 0.20 4.80 2500 1.91 67.49 4.24 0.17 41.3 JF12025D24MBL 24 18～26.5 0.25 6.00 3000 2.34 82.86 5.92 0.23 46.1 JF12025D24LHBL 24 18～26.5 0.30 7.20 3500 2.69 95.13 7.57 0.30 50.6 JF12025D24MHBL 24 18～26.5 0.35 8.40 4000 3.06 108.29 9.42 0.37 53.0 JF12025D24HBL 24 18～26.5 0.40 9.60 4500 3.43 121.06 11.30 0.45 57.1 JF12025D48LBL 48 36～54 0.08 3.60 2000 1.53 54.19 2.82 0.11 33.3 JF12025D48LMBL 48 36～54 0.10 4.80 2500 1.91 67.49 4.24 0.17 41.3 JF12025D48MBL 48 36～54 0.13 6.00 3000 2.34 82.86 5.92 0.23 46.1 JF12025D48LHBL 48 36～54 0.15 7.20 3500 2.69 95.13 7.57 0.30 50.6 JF12025D48MHBL 48 36～54 0.18 8.40 4000 3.06 108.29 9.42 0.37 53.0 JF12025D48HBL 48 36～54 0.20 9.60 4500 3.43 121.06 11.30 0.45 57.1
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 7
- overallSize
- 120.0*120.0*24.9 MM
- mountingSize
- 105.0*105.0 MM
- mountingHoleDiameter
- Φ4.3
- Ventilation Opening Size
- φ116.0 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 直流
- ratedVoltage
- 12V/24V/48V
- ratedPower
- 3.6/9.6 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 2000/4500 RPM
- airFlow
- 54.19/121.06 CFM
- airPressure
- 0.11/0.45 mmH₂O
- noiseLevel
- 57.1 dBA
- protectionGrade
- IP43
- lifeSpan
- 50000 h
- weight
- 152.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
