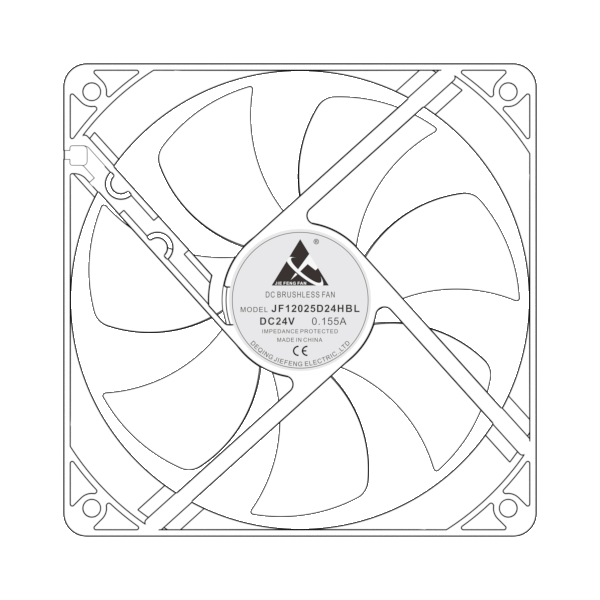

JF12025D24HBL-7A
JF12025D24HBL-7A from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM an…
Product overview
Product dimension drawing： Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF12025D12LBL 12 8.5～13.5 0.18 2.16 1500 1.82 64.20 1.75 0.07 30.5 JF12025D12LMBL 12 8.5～13.5 0.25 3.00 2000 2.17 76.60 2.44 0.10 36.5 JF12025D12MBL 12 8.5～13.5 0.31 3.72 2500 2.61 92.40 3.99 0.16 42.1 JF12025D12LHBL 12 8.5～13.5 0.45 5.40 3000 3.03 107.10 5.03 0.20 47.4 JF12025D24LBL 24 18～26.5 0.09 2.16 1500 1.82 64.20 1.75 0.07 30.5 JF12025D24LMBL 24 18～26.5 0.13 3.00 2000 2.17 76.60 2.44 0.10 36.5 JF12025D24MBL 24 18～26.5 0.16 3.72 2500 2.61 92.40 3.99 0.16 42.1 JF12025D24LHBL 24 18～26.5 0.23 5.40 3000 3.03 107.10 5.03 0.20 47.4 JF12025D48LBL 48 36～54 0.05 2.16 1500 1.82 64.20 1.75 0.07 30.5 JF12025D48LMBL 48 36～54 0.06 3.00 2000 2.17 76.60 2.44 0.10 36.5 JF12025D48MBL 48 36～54 0.08 3.72 2500 2.61 92.40 3.99 0.16 42.1 JF12025D48LHBL 48 36～54 0.11 5.40 3000 3.03 107.10 5.03 0.20 47.4
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 7
- overallSize
- 120.0*120.0*25.1 MM
- mountingSize
- 105.0*105.0 MM
- mountingHoleDiameter
- Φ4.3
- Ventilation Opening Size
- φ117.0 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 含油/滚珠
- powerType
- 直流
- ratedVoltage
- 12V/24V/48V
- ratedPower
- 2.16/5.4 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 1500/3000 RPM
- airFlow
- 64.2/107.1 CFM
- airPressure
- 0.07/0.20 mmH₂O
- noiseLevel
- 47.4 dBA
- protectionGrade
- IP43
- lifeSpan
- 30000/50000 h
- weight
- 122.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
