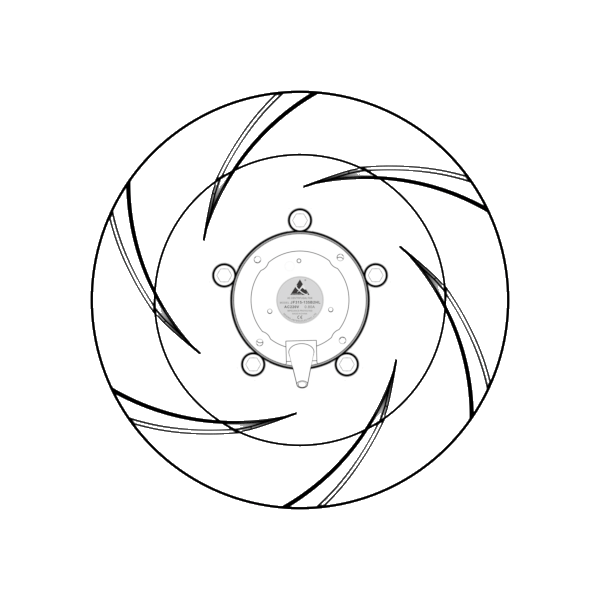

JF315-135B2HL
JF315-135B2HL from Jiefeng Electric. AC Centrifugal Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM …
Product overview
Product dimension drawing： Specification Table: Model Voltage VAC Freq Hz Current AMP Power Watt Speed RPM Capacitor Airflow Temperature Noise dBA Type V Hz A W RPM μF m³/cfm Min/Max ℃ dB(A) JF315-135B2HL(BMC) 220 50 0.60 135 1350 4 1900/1117 -30/+60 63 0.40 85 85 1550/912 -30/+60 57 0.3 65 65 1250/735 -30/+60 51
Product specifications
- productType
- 离心风机
- brand
- JIEFENG FAN
- bladeMaterial
- 金属 Q235
- bladeDiameter
- 316MM
- overallSize
- 316*165MM
- mountingSize
- φ90MM
- mountingHoleDiameter
- 6MM
- motorType
- 异步外转子
- insulationClass
- H级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V，220V，380V
- capacitorModel
- 4μf
- ratedPower
- 65/135W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~75%RH
- speed
- 65/1350RPM
- airFlow
- 735/1900m³/cfm
- noiseLevel
- 51/63dBA
- lifeSpan
- 50000h
- weight
- 3900g
- wiringMethod
- 引线
- safetyCertification
- CE
