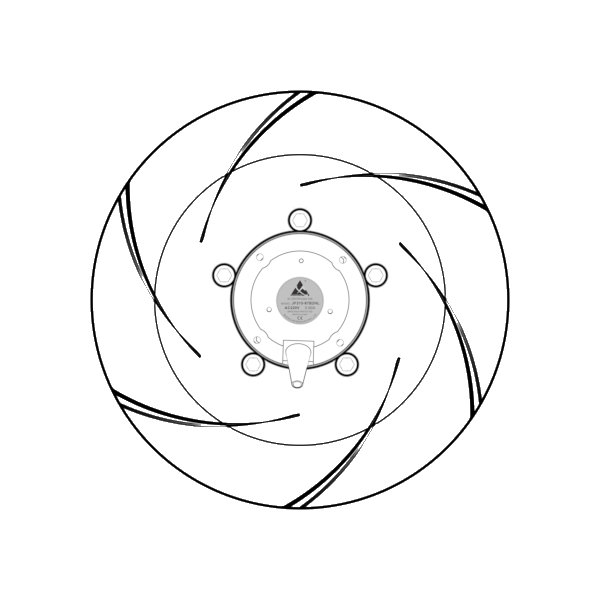

JF315-87B2HL
JF315-87B2HL from Jiefeng Electric. AC Centrifugal Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM a…
Product overview
Product dimension drawing： Specification Table: Model Voltage VAC Freq Hz Current AMP Power Watt Speed RPM Capacitor Airflow Temperature Noise dBA Type V Hz A W RPM μF m³/cfm Min/Max ℃ dB(A) JF315-87B2HL(BMC) 220 50 0.50 95 1400 3 1350/794 -30/+60 56 220 60 0.60 115 1600 3 1500/882 -30/+60 58
Product specifications
- productType
- 离心风机
- brand
- JIEFENG FAN
- bladeMaterial
- 金属 Q235
- bladeDiameter
- 316MM
- overallSize
- 316*115MM
- mountingSize
- φ90MM
- mountingHoleDiameter
- 6MM
- motorType
- 异步外转子
- insulationClass
- H级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V，220V，380V
- capacitorModel
- 4μf
- ratedPower
- 95/115W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~75%RH
- speed
- 1400/1600RPM
- airFlow
- 794/1500m³/cfm
- noiseLevel
- 56/58dBA
- lifeSpan
- 50000h
- weight
- 3400g
- wiringMethod
- 引线
- safetyCertification
- CE
