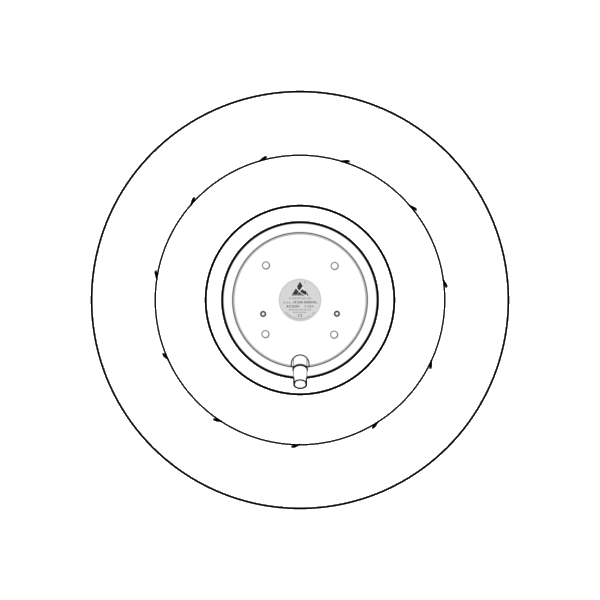

JF250-80B2HL
JF250-80B2HL from Jiefeng Electric. AC Centrifugal Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM a…
Product overview
Product dimension drawing： Specification Table: Model Voltage VAC Freq Hz Current AMP Power Watt Speed RPM Capacitor Airflow Temperature Noise dBA Type V Hz A W RPM μF m³/cfm Min/Max ℃ dB(A) JF250-80B2HL(BMC) 220 50 0.24 50 1400 2 830/488 -30/+60 68 60 0.27 60 1600 2 950/558 -30/+60 70 JF250-80B3HL(BMC) 380 50 0.15 50 1450 / 830/488 -30/+60 68 60 0.15 60 1600 / 950/558 -30/+60 70
Product specifications
- productType
- 离心风机
- brand
- JIEFENG FAN
- bladeMaterial
- 金属 Q235
- bladeDiameter
- 250MM
- overallSize
- 250*100MM
- mountingSize
- φ58MM
- mountingHoleDiameter
- 4MM
- motorType
- 异步外转子
- insulationClass
- H级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V，220V，380V
- capacitorModel
- 4μf
- ratedPower
- 50/60W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~75%RH
- speed
- 1400/1600RPM
- airFlow
- 488/950m³/cfm
- noiseLevel
- 68/70dBA
- lifeSpan
- 50000h
- weight
- 4200g
- wiringMethod
- 引线
- safetyCertification
- CE
