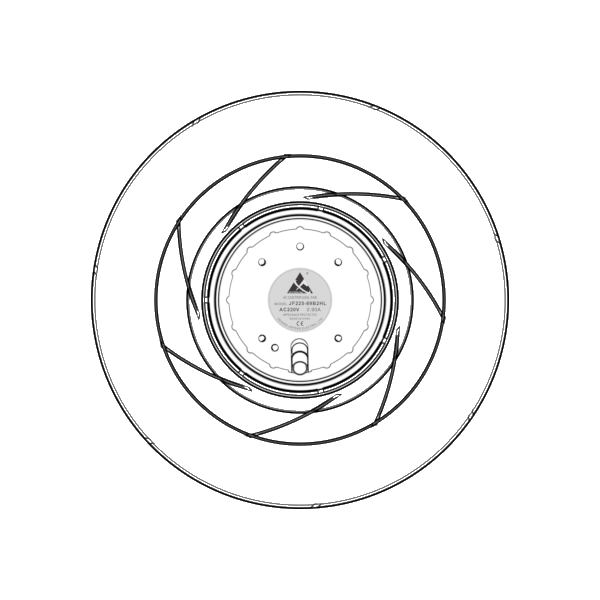

JF225-89B2HL
JF225-89B2HL from Jiefeng Electric. AC Centrifugal Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM a…
Product overview
Product dimension drawing： Specification Table: Model Voltage VAC Freq Hz Current AMP Power Watt Speed RPM Capacitor Airflow Temperature Noise dBA Type V Hz A W RPM μF m³/cfm Min/Max ℃ dB(A) JF225-89B2HL(BPC) 220 50 0.60 125 2630 4 1100/647 -30/+60 70 0.54 120 2500 4 1045/615 -30/+60 68.5 0.52 115 2290 4 955/563 -30/+60 66
Product specifications
- productType
- 离心风机
- brand
- JIEFENG FAN
- bladeMaterial
- 塑料 PBT+28%GF
- bladeDiameter
- 225MM
- overallSize
- 225*100MM
- mountingSize
- φ58MM
- mountingHoleDiameter
- 4MM
- motorType
- 异步外转子
- insulationClass
- H级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V，220V，380V
- capacitorModel
- 4μf
- ratedPower
- 115/125W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~75%RH
- speed
- 2290/2630RPM
- airFlow
- 563/1100m³/cfm
- noiseLevel
- 66/70dBA
- lifeSpan
- 50000h
- weight
- 2900g
- wiringMethod
- 引线
- safetyCertification
- CE
