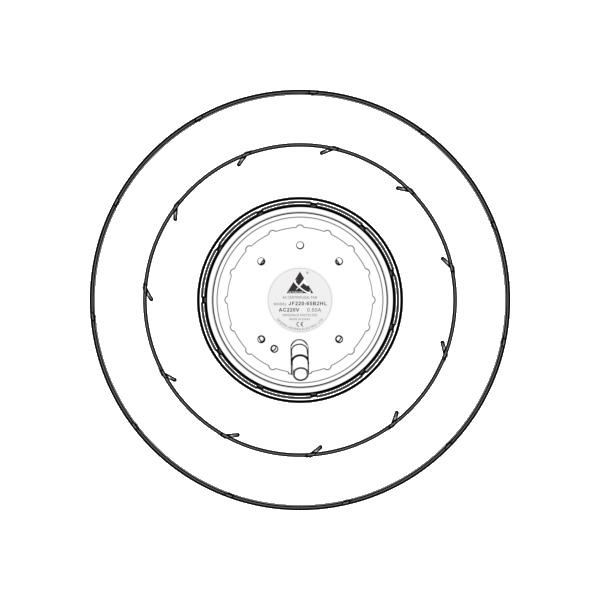

JF220-65B2HL
JF220-65B2HL from Jiefeng Electric. AC Centrifugal Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM a…
Product overview
Product dimension drawing： Specification Table: Model Voltage VAC Freq Hz Current AMP Power Watt Speed RPM Capacitor Airflow Temperature Noise dBA Type V Hz A W RPM μF m³/cfm Min/Max ℃ dB(A) JF220-65B2HL(BPC) 220 50 0.41 90 2500 2.5 910/535 -30/+60 70 60 0.46 100 2700 2.5 970/570 -30/+60 73 JF220-65B2HL(BPC) 380 50 0.17 85 2500 / 910/535 -30/+60 70 60 0.20 100 2700 / 970/570 -30/+60 73
Product specifications
- productType
- 离心风机
- brand
- JIEFENG FAN
- bladeMaterial
- 塑料 PBT+28%GF
- bladeDiameter
- 222MM
- overallSize
- 222*72MM
- mountingSize
- φ58MM
- mountingHoleDiameter
- 4MM
- motorType
- 异步外转子
- insulationClass
- H级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V，220V，380V
- capacitorModel
- 3μf
- ratedPower
- 85/100W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~75%RH
- speed
- 2500/2700RPM
- airFlow
- 535/970m³/cfm
- noiseLevel
- 70/73dBA
- lifeSpan
- 50000h
- weight
- 1500g
- wiringMethod
- 引线
- safetyCertification
- CE
