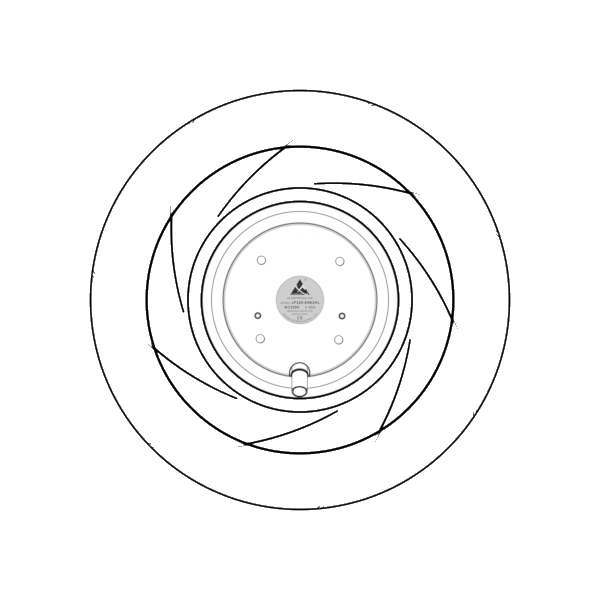

JF220-64B2HL
JF220-64B2HL from Jiefeng Electric. AC Centrifugal Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM a…
Product overview
Product dimension drawing： Specification Table: Model Voltage VAC Freq Hz Current AMP Power Watt Speed RPM Capacitor Airflow Temperature Noise dBA Type V Hz A W RPM μF m³/cfm Min/Max ℃ dB(A) JF220-64B2HL(BPC) 220 50 0.44 95 2500 2.5 800/470 -30/+60 70 0.40 90 2300 2.5 750/441 -30/+60 67 0.40 88 2000 2.5 670/394 -30/+60 64
Product specifications
- productType
- 离心风机
- brand
- JIEFENG FAN
- bladeMaterial
- 塑料 PBT+28%GF
- bladeDiameter
- 220MM
- overallSize
- 220*72MM
- mountingSize
- φ58MM
- mountingHoleDiameter
- 4MM
- motorType
- 异步外转子
- insulationClass
- H级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V，220V，380V
- capacitorModel
- 3μf
- ratedPower
- 88/95W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~75%RH
- speed
- 2000/2500RPM
- airFlow
- 394/800m³/cfm
- noiseLevel
- 64/70dBA
- lifeSpan
- 50000h
- weight
- 1500g
- wiringMethod
- 引线
- safetyCertification
- CE
