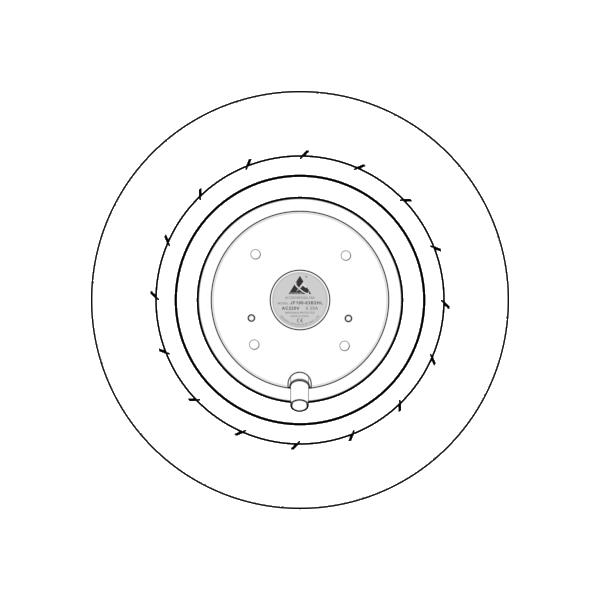

JF190-63B2HL
JF190-63B2HL from Jiefeng Electric. AC Centrifugal Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM a…
Product overview
Product dimension drawing： Specification Table: FCA190-63B2HL(BMC)金属 Specification Table: Model Voltage VAC Freq Hz Current AMP Power Watt Speed RPM Capacitor Airflow Temperature Noise dBA Type V Hz A W RPM μF m³/cfm Min/Max ℃ dB(A) FCA190-63B2HL(BMC) 220 50 0.27 60 2500 2.0 540/317 -30/+60 65 220 60 0.35 76 2700 2.0 600/350 -30/+60 68
Product specifications
- productType
- 离心风机
- brand
- JIEFENG FAN
- bladeMaterial
- 金属 Q235
- bladeDiameter
- 190MM
- overallSize
- 190*71MM
- mountingSize
- φ58MM
- mountingHoleDiameter
- 4MM
- motorType
- 异步外转子
- insulationClass
- H级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V，220V，380V
- capacitorModel
- 2μf
- ratedPower
- 60/76W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~75%RH
- speed
- 2500/2700RPM
- airFlow
- 317/600m³/cfm
- noiseLevel
- 65/68dBA
- lifeSpan
- 50000h
- weight
- 1300g
- wiringMethod
- 引线
- safetyCertification
- CE
