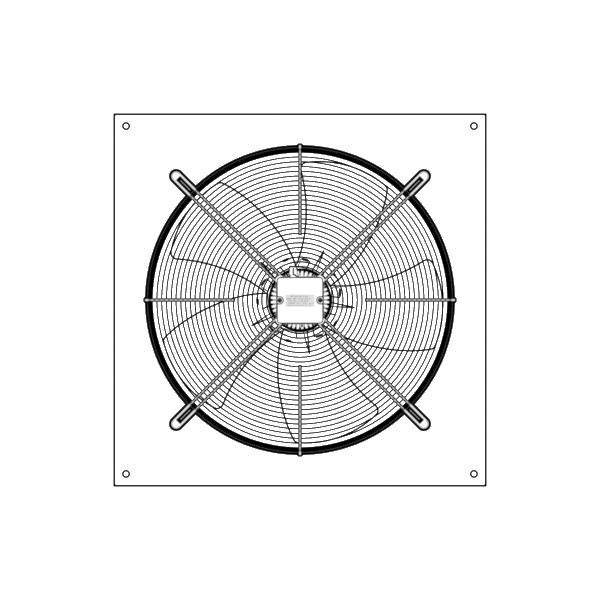

YWF-2E630S-5FN-A
YWF-2E630S-5FN-A from Jiefeng Electric. AC External Rotor Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications…
Product overview
Product dimension drawing： Specification Table: YWF-630S Specification Table: Model Voltage VAC Freq Hz Current AMP Power Watt Capacitor Speed RPM Airflow Pst Temperature Noise dBA Weight Type V Hz A W μF RPM m³/h Pa Min/Max ℃ dB(A) Kg YWF4E-630S-5 220 50 3.70 850.00 16 1360 6500/10800 30 -30/+60 74 15 60 5.34 1150.00 1500 6600/11000 60 75 YWF4D-630S-5 380 50 1.80 850.00 / 1350 6500/10800 30 -30/+60 74 60 2.00 1010.00 1540 6600/11000 90 75 YWF6E-630S-5 220 50 2.50 520.00 12 900 5600/9300 15 -30/+60 67 60 3.25 705.00 1050 6300/10500 110 71 YWF6D-630S-5 380 50 1.40 550.00 / 900 5600/9300 15 -30/+60 67 60 1.56 740.00 1060 6300/10500 110 71
Product specifications
- productType
- 外转子风机
- brand
- JIEFENG FAN
- bladeMaterial
- 金属 Q235
- bladeDiameter
- 622MM
- bladeCount
- 5
- overallSize
- 805*805*223MM
- mountingSize
- φMM
- mountingHoleDiameter
- 10MM
- Ventilation Opening Size
- 640MM
- motorType
- 异步外转子
- insulationClass
- H级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V,220V,380V
- capacitorModel
- 16μf
- ratedPower
- 520/1150W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~75%RH
- speed
- 900/1540RPM
- airFlow
- 5600/11000m³/h
- airPressure
- 15/110Pa
- noiseLevel
- 67/75dBA
- lifeSpan
- 50000h
- weight
- 15000g
- wiringMethod
- 引线，防水插头
- safetyCertification
- ROHS,CE
