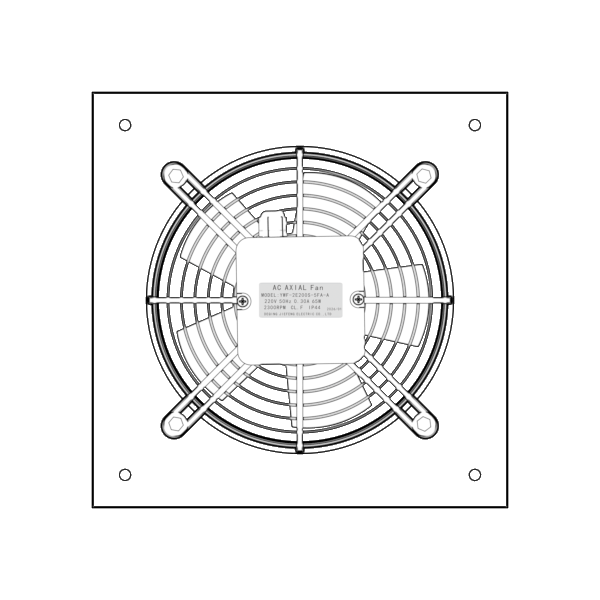

YWF-2E200S-5FA-A
YWF-2E200S-5FA-A from Jiefeng Electric. AC External Rotor Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications…
Product overview
Product dimension drawing： Specification Table: YWFK-200S Specification Table: Model Voltage VAC Freq Hz Current AMP Power Watt Capacitor Speed RPM Airflow Pst Temperature Noise dBA Type V Hz A W μF RPM m³/h Pa Min/Max ℃ dB(A) YWFK2E-200S-7 220 50 0.30 60.00 2 2550 518/880 -30/+60 58 60 0.34 75.00 2800 576/980 60 YWFK2D-200S-7 380 50 0.21 65.00 / 2300 518/880 -30/+60 58 60 0.24 80.00 2600 576/980 60
Product specifications
- productType
- 外转子风机
- brand
- JIEFENG FAN
- bladeMaterial
- 金属 Q235
- bladeDiameter
- 193MM
- bladeCount
- 5
- overallSize
- 310*310*128.5MM
- mountingSize
- φ260MM
- mountingHoleDiameter
- 7MM
- Ventilation Opening Size
- 209.5MM
- motorType
- 异步外转子
- insulationClass
- H级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V,220V,380V
- capacitorModel
- 1.5μf
- ratedPower
- 60/80W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~75%RH
- speed
- 2300/2800RPM
- airFlow
- 518/980m³/h
- noiseLevel
- 58/60dBA
- lifeSpan
- 50000h
- weight
- 1900g
- wiringMethod
- 引线，防水插头
- safetyCertification
- ROHS,CE
Related products

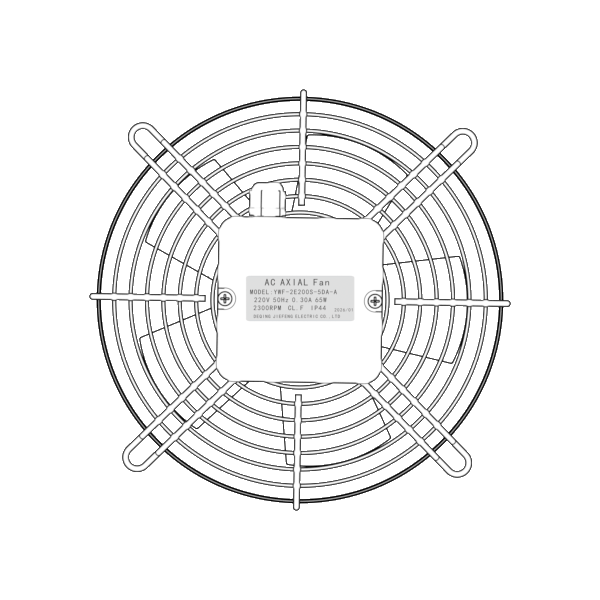

YWF-2E200S-5DA-A
Product dimension drawing： Specification Table: YWF-200S Specification Table: Model Voltage VAC Freq Hz Current AMP Power Watt Capacitor Sp…

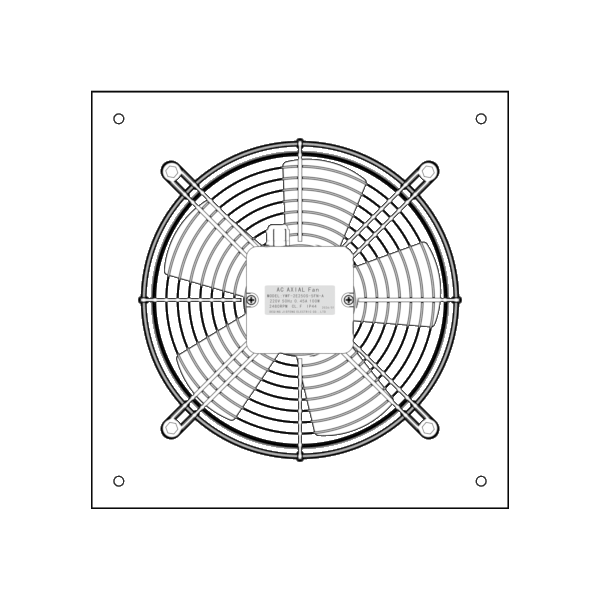

YWF-2E250S-5FN-A
Product dimension drawing： Specification Table: YWFK-250S Specification Table: Model Voltage VAC Freq Hz Current AMP Power Watt Capacitor S…

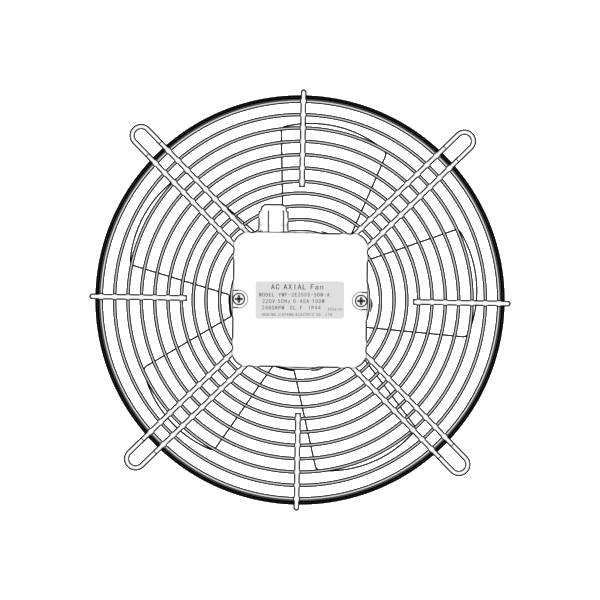

YWF-2E250S-5DN-A
Product dimension drawing： Specification Table: YWF-250S Specification Table: Model Voltage VAC Freq Hz Current AMP Power Watt Capacitor Sp…

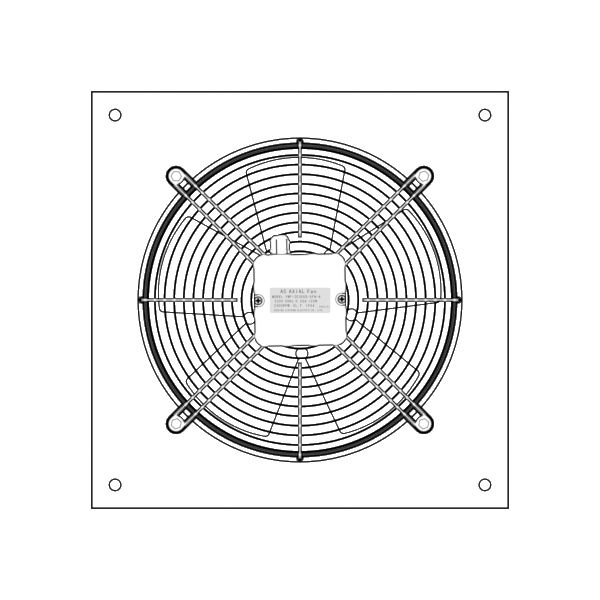

YWF-2E300S-5FN-A
Product dimension drawing： Specification Table: YWF-300S Specification Table: Model Voltage VAC Freq Hz Current AMP Power Watt Capacitor Sp…

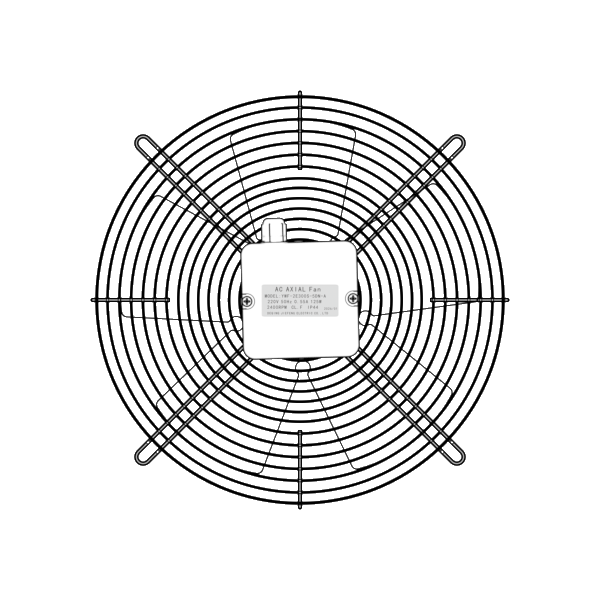

YWF-2E300S-5DN-A
Product dimension drawing： Specification Table: YWF-300S Specification Table: Model Voltage VAC Freq Hz Current AMP Power Watt Capacitor Sp…

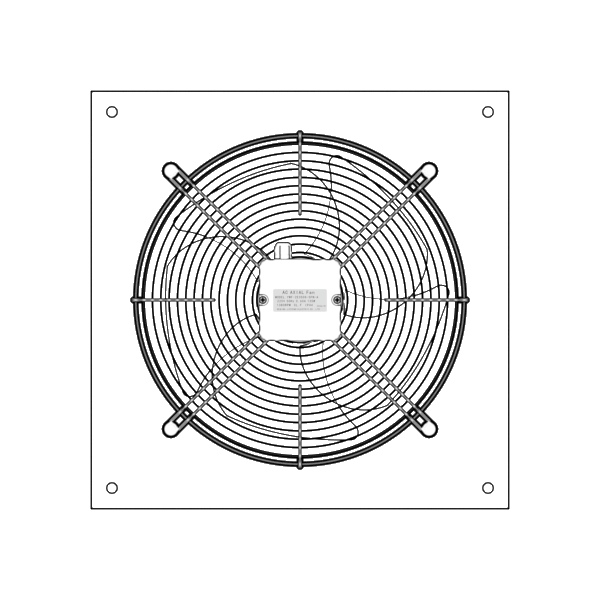

YWF-2E350S-5FN-A
