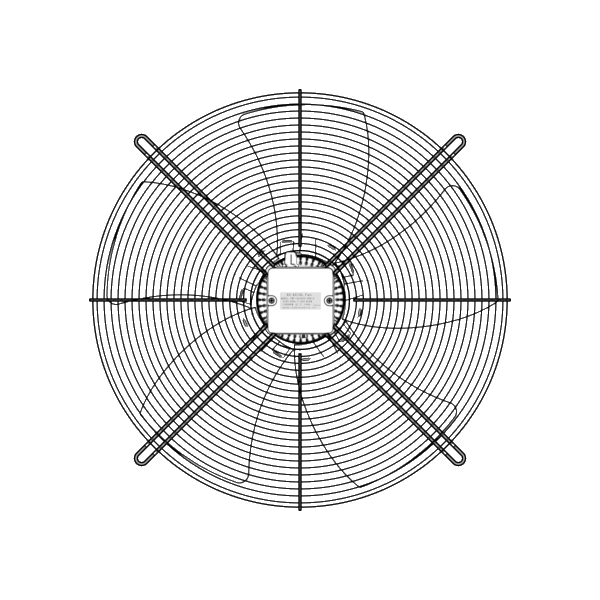

YWF-2E600S-5DN-A
YWF-2E600S-5DN-A from Jiefeng Electric. AC External Rotor Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications…
Product overview
Product dimension drawing： Specification Table: YWF-600S Specification Table: Model Voltage VAC Freq Hz Current AMP Power Watt Capacitor Speed RPM Airflow Pst Temperature Noise dBA Weight Type V Hz A W μF RPM m³/h Pa Min/Max ℃ dB(A) Kg YWF4E-600S-5 220 50 3.60 800.00 16 1380 5700/9500 52 -30/+60 73 15 60 4.20 920.00 1640 6600/11000 110 75 YWF4D-600S-5 380 50 1.70 800.00 / 1350 5700/9500 25 -30/+60 73 60 2.00 1000.00 1550 6600/11000 140 75 YWF6E-600S-5 220 50 2.40 500.00 12 910 5100/8500 15 -30/+60 69 60 2.94 640.00 1080 5800/9700 90 70 YWF6D-600S-5 380 50 1.50 500.00 / 920 5100/8500 15 -30/+60 69 60 1.55 575.00 1070 5800/9700 100 70
Product specifications
- productType
- 外转子风机
- brand
- JIEFENG FAN
- bladeMaterial
- 金属 Q235
- bladeDiameter
- 600MM
- bladeCount
- 5
- overallSize
- 640*216MM
- mountingSize
- φ678.5MM
- mountingHoleDiameter
- 10MM
- Ventilation Opening Size
- 625MM
- motorType
- 异步外转子
- insulationClass
- H级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V,220V,380V
- capacitorModel
- 16μf
- ratedPower
- 500/1000W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~75%RH
- speed
- 910/1640RPM
- airFlow
- 5100/11000m³/h
- airPressure
- 15/140Pa
- noiseLevel
- 69/75dBA
- lifeSpan
- 50000h
- weight
- 15000g
- wiringMethod
- 引线，防水插头
- safetyCertification
- ROHS,CE
