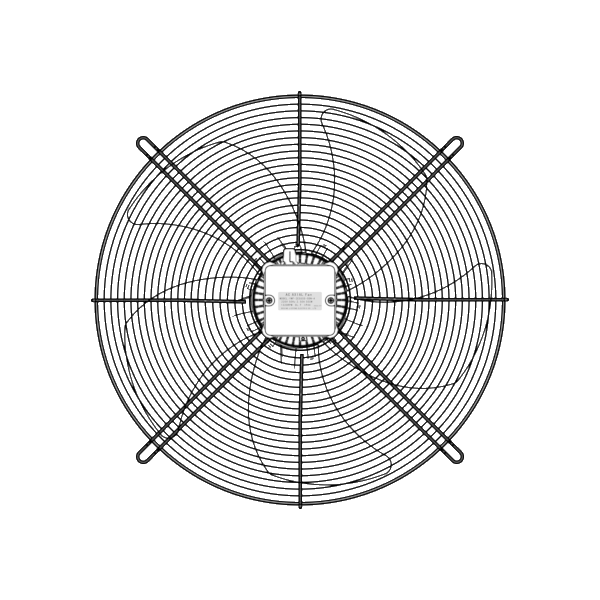

YWF-2E550S-5DN-A
YWF-2E550S-5DN-A from Jiefeng Electric. AC External Rotor Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications…
Product overview
Product dimension drawing： Specification Table: YWF-550S Specification Table: Model Voltage VAC Freq Hz Current AMP Power Watt Capacitor Speed RPM Airflow Pst Temperature Noise dBA Weight Type V Hz A W μF RPM m³/h Pa Min/Max ℃ dB(A) Kg YWF4E-550S-5 220 50 2.50 550.00 12 1320 4588/7800 20 -30/+60 73 10.5 60 3.30 725.00 1450 5000/8500 150 74 YWF4D-550S-5 380 50 1.15 550.00 / 1330 4588/7800 20 -30/+60 73 60 1.40 725.00 1540 5000/8500 180 74 YWF6E-550S-5 220 50 1.20 280.00 6 900 3823/6500 40 -30/+60 62 60 2.15 465.00 1060 4117/7000 80 66 YWF6D-550S-5 380 50 0.95 320.00 / 910 3823/6500 40 -30/+60 62 60 1.00 440.00 1090 4117/7000 80 66
Product specifications
- productType
- 外转子风机
- brand
- JIEFENG FAN
- bladeMaterial
- 金属 Q235
- bladeDiameter
- 552MM
- bladeCount
- 5
- overallSize
- 595*208MM
- mountingSize
- φ630MM
- mountingHoleDiameter
- 10MM
- Ventilation Opening Size
- 578MM
- motorType
- 异步外转子
- insulationClass
- H级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V,220V,380V
- capacitorModel
- 12μf
- ratedPower
- 280/725W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~75%RH
- speed
- 900/1540RPM
- airFlow
- 3823/8500m³/h
- airPressure
- 20/180Pa
- noiseLevel
- 62/74dBA
- lifeSpan
- 50000h
- weight
- 10500g
- wiringMethod
- 引线，防水插头
- safetyCertification
- ROHS,CE
