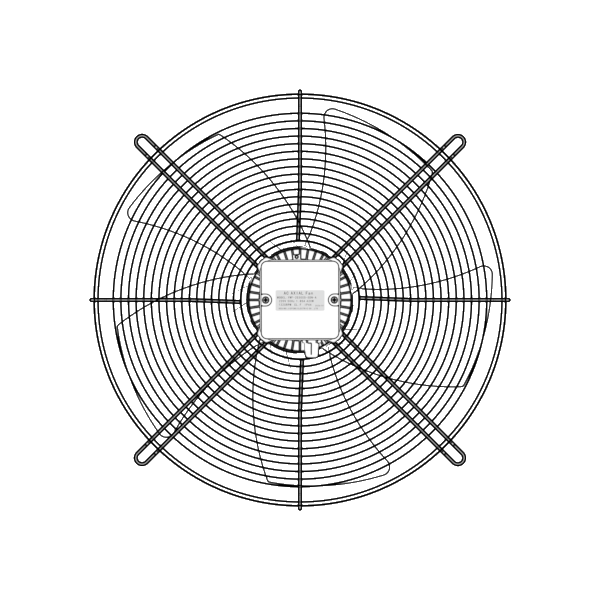

YWF-2E500S-5DN-A
YWF-2E500S-5DN-A from Jiefeng Electric. AC External Rotor Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications…
Product overview
Product dimension drawing： Specification Table: YWF-500S Specification Table: Model Voltage VAC Freq Hz Current AMP Power Watt Capacitor Speed RPM Airflow Pst Temperature Noise dBA Weight Type V Hz A W μF RPM m³/h Pa Min/Max ℃ dB(A) Kg YWF4E-500S-5 220 50 1.85 420.00 10 1320 3835/6500 20 -30/+60 69 9.5 60 2.30 500.00 1450 4000/6800 150 70 YWF4D-500S-5 380 50 0.90 420.00 / 1350 3835/6500 20 -30/+60 69 60 1.00 500.00 1500 4000/6800 150 70 YWF6E-500S-5 220 50 1.10 220.00 6 900 2541/4320 15 -30/+60 65 60 1.35 250.00 1020 2823/4800 80 66 YWF6D-500S-5 380 50 0.60 220.00 / 900 2541/4320 15 -30/+60 65 60 0.65 250.00 1100 2832/4800 100 66
Product specifications
- productType
- 外转子风机
- brand
- JIEFENG FAN
- bladeMaterial
- 金属 Q235
- bladeDiameter
- 498MM
- bladeCount
- 5
- overallSize
- 538*192MM
- mountingSize
- φ570MM
- mountingHoleDiameter
- 10MM
- Ventilation Opening Size
- 522MM
- motorType
- 异步外转子
- insulationClass
- H级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V,220V,380V
- capacitorModel
- 10μf
- ratedPower
- 220/500W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~75%RH
- speed
- 900/1500RPM
- airFlow
- 2541/6800m³/h
- airPressure
- 15/150Pa
- noiseLevel
- 65/70dBA
- lifeSpan
- 50000h
- weight
- 9500g
- wiringMethod
- 引线，防水插头
- safetyCertification
- ROHS,CE
