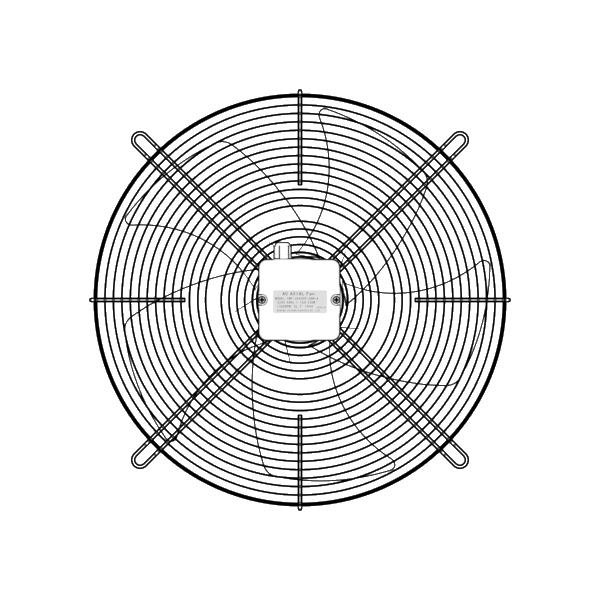

YWF-2E450S-5DN-A
YWF-2E450S-5DN-A from Jiefeng Electric. AC External Rotor Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications…
Product overview
Product dimension drawing： Specification Table: YWF-450S Specification Table: Model Voltage VAC Freq Hz Current AMP Power Watt Capacitor Speed RPM Airflow Pst Temperature Noise dBA Weight Type V Hz A W μF RPM m³/h Pa Min/Max ℃ dB(A) Kg YWF4E-450S-5 220 50 1.15 230.00 7 1350 2650/4500 20 -30/+60 62 6.9 60 1.20 280.00 1600 2825/4800 80 64 YWF4D-450S-5 380 50 0.60 230.00 / 1350 2650/4500 20 -30/+60 62 60 0.80 280.00 1600 2825/4800 80 64 YWF6E-450S-5 220 50 0.65 135.00 6 920 1705/2900 20 -30/+60 56 60 0.75 170.00 1100 2000/3400 60 58 YWF6D-450S-5 380 50 0.31 135.00 / 910 1705/2900 20 -30/+60 56 60 0.34 140.00 1030 2000/3400 60 58
Product specifications
- productType
- 外转子风机
- brand
- JIEFENG FAN
- bladeMaterial
- 金属 Q235
- bladeDiameter
- 448MM
- bladeCount
- 5
- overallSize
- 488*191MM
- mountingSize
- φ525MM
- mountingHoleDiameter
- 10MM
- Ventilation Opening Size
- 472MM
- motorType
- 异步外转子
- insulationClass
- H级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V,220V,380V
- capacitorModel
- 7μf
- ratedPower
- 135/280W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~75%RH
- speed
- 910/1600RPM
- airFlow
- 1705/4800m³/h
- airPressure
- 20/80Pa
- noiseLevel
- 56/64dBA
- lifeSpan
- 50000h
- weight
- 6900g
- wiringMethod
- 引线，防水插头
- safetyCertification
- ROHS,CE
