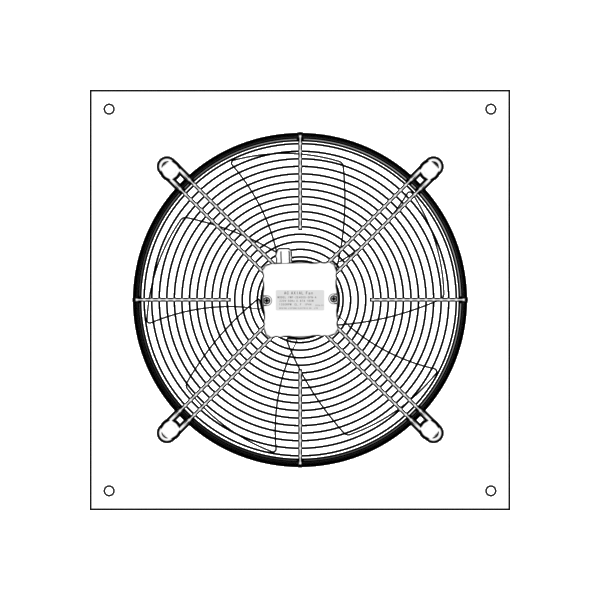

YWF-2E400S-5FN-A
YWF-2E400S-5FN-A from Jiefeng Electric. AC External Rotor Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications…
Product overview
Product dimension drawing： Specification Table: YWF-400S Specification Table: Model Voltage VAC Freq Hz Current AMP Power Watt Capacitor Speed RPM Airflow Pst Temperature Noise dBA Weight Type V Hz A W μF RPM m³/h Pa Min/Max ℃ dB(A) Kg YWF4E-400S-5 220 50 0.87 180.00 6 1350 2000/3500 20 -30/+60 60 6.1 60 1.22 260.00 1580 2200/3900 80 62 YWF4D-400S-5 380 50 0.50 180.00 / 1370 2000/3500 20 -30/+60 60 60 0.47 245.00 1620 2200/3900 90 62 YWF6E-400S-5 220 50 0.50 110.00 4 950 1530/2600 10 -30/+60 55 60 0.54 120.00 1100 1765/3000 45 57 YWF6D-400S-5 380 50 0.31 110.00 / 950 1530/2600 10 -30/+60 55 60 0.30 135.00 1100 1765/3000 50 57
Product specifications
- productType
- 外转子风机
- brand
- JIEFENG FAN
- bladeMaterial
- 金属 Q235
- bladeDiameter
- 400MM
- bladeCount
- 5
- overallSize
- 540*540*184.7MM
- mountingSize
- φ490MM
- mountingHoleDiameter
- 10MM
- Ventilation Opening Size
- 407MM
- motorType
- 异步外转子
- insulationClass
- H级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 11V,220V,380V
- capacitorModel
- 6μf
- ratedPower
- 110/260W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~75%RH
- speed
- 950/1580RPM
- airFlow
- 1530/3900m³/h
- airPressure
- 10/90Pa
- noiseLevel
- 55/62dBA
- lifeSpan
- 50000h
- weight
- 6100g
- wiringMethod
- 引线，防水插头
- safetyCertification
- ROHS,CE
