8805.220
8805.220 from Jiefeng Electric. AC Cabinet Filter Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM an…
Product overview

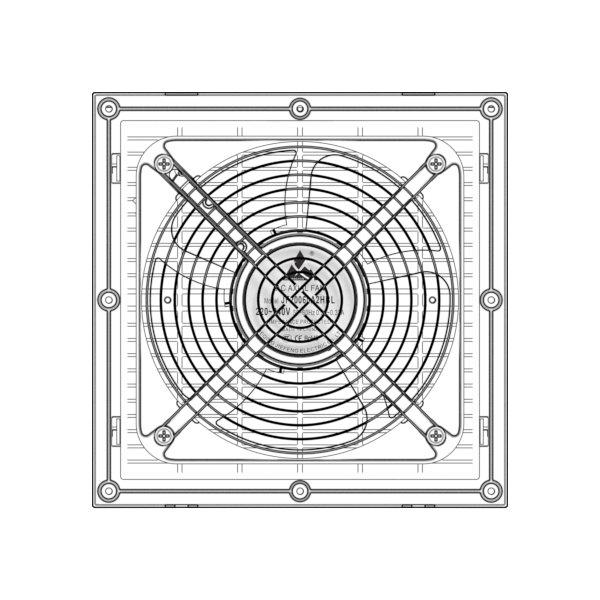

Product dimension drawing： Specification Table: Model Freq Bearing Voltage Current Power Speed Airflow Noise PART.NO. Hz Style VAC AMP Watt RPM CFM dBA 8805.110 50/60 Ball 110 0.60/0.58 66.0/63.8 2400/2700 266/294 62/66 8805.220 50/60 Ball 220 0.36/0.34 79.2/74.8 2400/2700 266/294 62/66 8805.380 50/60 Ball 380 0.17/0.16 64.6/60.8 2400/2700 266/294 62/66
Product specifications
- productType
- 过滤器
- brand
- JIEFENG FAN
- correspondingFan
- 20060
- netCoverMaterial
- ABS
- netCoverColor
- RAL7035
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 5
- overallSize
- 255*255*95.31MM
- mountingSize
- 234*234MM
- mountingHoleDiameter
- 4MM
- Ventilation Opening Size
- 220*220MM
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V,220V,380V
- ratedPower
- 66.0/79.2W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~75%RH
- speed
- 2400/2700RPM
- airFlow
- 266/294CFM
- noiseLevel
- 62/66dBA
- lifeSpan
- 50000h
- weight
- 1730g
- wiringMethod
- 端子
- safetyCertification
- CCC,ROHS,CE
