3304.220
3304.220 from Jiefeng Electric. AC Cabinet Filter Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM an…
Product overview

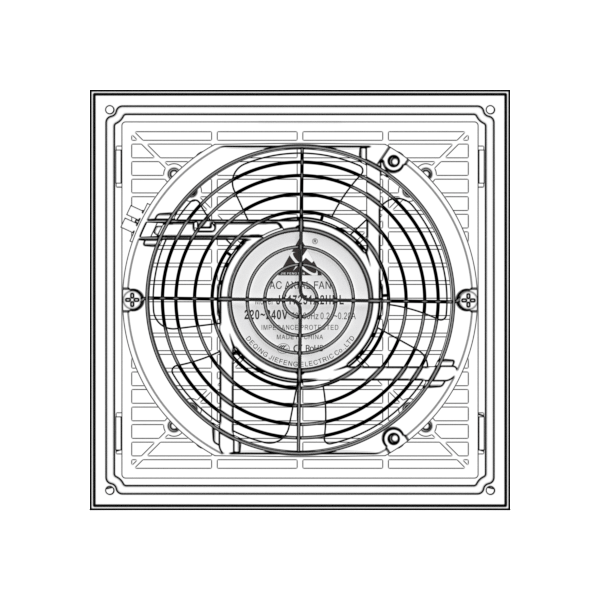

Product dimension drawing： Specification Table: Model Freq Bearing Voltage Current Power Speed Airflow Noise PART.NO. Hz Style VAC AMP Watt RPM CFM dBA 3304.110 50/60 Ball 110 0.42/0.40 46.2/44.0 2750/3200 122.5/140 53/59 3304.220 50/60 Ball 220 0.22/0.20 48.4/44.0 2750/3200 122.5/140 53/59 3304.380 50/60 Ball 380 0.12/0.11 45.6/41.8 2750/3200 122.5/140 53/59
Product specifications
- productType
- 过滤器
- brand
- JIEFENG FAN
- correspondingFan
- 17251
- netCoverMaterial
- ABS
- netCoverColor
- RAL7035
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 5
- overallSize
- 204*204*94.23MM
- mountingSize
- 184.5*184.5MM
- mountingHoleDiameter
- 4MM
- Ventilation Opening Size
- 173*173MM
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V，220V，380V
- ratedPower
- 41.8/48.4W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~75%RH
- speed
- 2700/3200RPM
- airFlow
- 121.1/140CFM
- noiseLevel
- 52/62dBA
- lifeSpan
- 50000h
- weight
- 1100g
- wiringMethod
- 端子
- safetyCertification
- CCC,ROHS,CE
