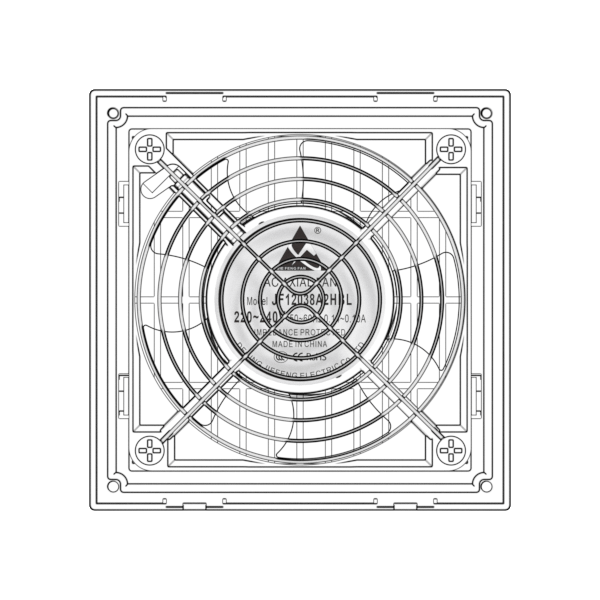

8803.220
8803.220 from Jiefeng Electric. AC Cabinet Filter Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM an…
Product overview
Product dimension drawing： Specification Table: Model Freq Bearing Voltage Current Power Speed Airflow Noise PART.NO. Hz Style VAC AMP Watt RPM CFM dBA 8803.110 50/60 Ball 110 0.23/0.21 25.3/23.1 2600/3100 63/66.5 41/45 8803.220 50/60 Ball 220 0.12/0.10 26.4/22.0 2600/3100 63/66.5 41/45 8803.380 50/60 Ball 380 0.08/0.07 30.4/26.6 2600/3100 63/66.5 41/45
Product specifications
- productType
- 过滤器
- brand
- JIEFENG FAN
- correspondingFan
- 12038
- netCoverMaterial
- ABS
- netCoverColor
- RAL7035
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 5
- overallSize
- 148*148*72.17MM
- mountingSize
- 131*131MM
- mountingHoleDiameter
- 4.5MM
- Ventilation Opening Size
- 120*120MM
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V,220V,380V
- ratedPower
- 22.0/30.4W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~75%RH
- speed
- 2550/3100RPM
- airFlow
- 62.3/66.5CFM
- noiseLevel
- 40/48dBA
- lifeSpan
- 50000h
- weight
- 595g
- wiringMethod
- 端子
- safetyCertification
- CCC,ROHS,CE
