8801.220
8801.220 from Jiefeng Electric. AC Cabinet Filter Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM an…
Product overview

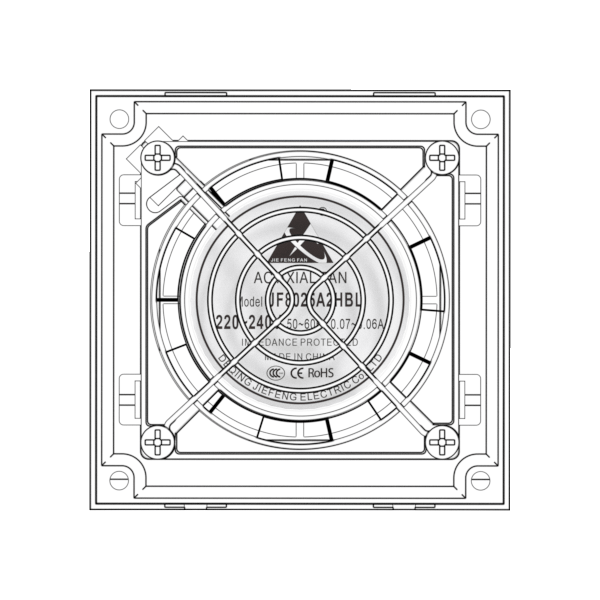

Product dimension drawing： Specification Table: Model Freq Bearing Voltage Current Power Speed Airflow Noise PART.NO. Hz Style VAC AMP Watt RPM CFM dBA 8801.110 50/60 Ball 110 0.14/0.12 15.4/13.2 2400/2900 12.6/15.4 27/32 8801.220 50/60 Ball 220 0.08/0.07 17.6/15.4 2400/2900 12.6/15.4 27/32 8801.380 50/60 Ball 380 0.05/0.04 19.0/15.2 2400/2900 12.6/15.4 27/32
Product specifications
- productType
- 过滤器
- brand
- JIEFENG FAN
- correspondingFan
- 8025
- netCoverMaterial
- ABS
- netCoverColor
- RAL7035
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 7
- overallSize
- 106*106*53.7MM
- mountingSize
- 91*91MM
- mountingHoleDiameter
- 4.5MM
- Ventilation Opening Size
- 80.2*80.2MM
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V,220V,380V
- ratedPower
- 13.2/19.0W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~75%RH
- speed
- 2300/2900RPM
- airFlow
- 11.9/15.4CFM
- noiseLevel
- 26/34dBA
- lifeSpan
- 50000h
- weight
- 155g
- wiringMethod
- 端子
- safetyCertification
- CCC,ROHS,CE
