6606.220
6606.220 from Jiefeng Electric. AC Cabinet Filter Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM an…
Product overview

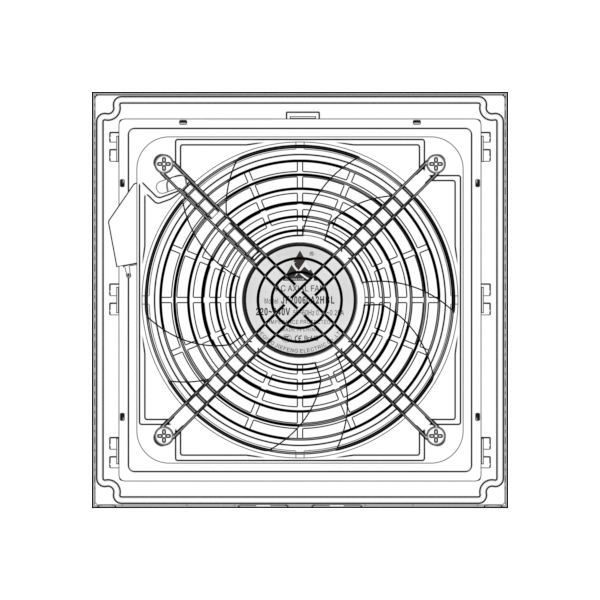

Product dimension drawing： Specification Table: Model Freq Bearing Voltage Current Power Speed Airflow Noise PART.NO. Hz Style VAC AMP Watt RPM CFM dBA 6606.110 50/60 Ball 110/120 0.40/0.36 44.0/39.6 2600/3050 380/420 62/66 6606.220 50/60 Ball 220/240 0.21/0.18 46.2/39.6 2600/3050 380/420 62/66 6606.380 50/60 Ball 380/400 0.12/0.10 45.6/38.0 2600/3050 380/420 62/66
Product specifications
- productType
- 过滤器
- brand
- JIEFENG FAN
- correspondingFan
- 20060
- netCoverMaterial
- ABS
- netCoverColor
- RAL7035
- bladeMaterial
- 金属 Q235
- bladeCount
- 5
- overallSize
- 255*255*108.7MM
- mountingHoleDiameter
- 5MM
- Ventilation Opening Size
- 222*222MM
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V,220V,380V
- ratedPower
- 39.6/46.2W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~75%RH
- speed
- 2600/3050RPM
- airFlow
- 380/420CFM
- noiseLevel
- 62/66dBA
- lifeSpan
- 50000h
- weight
- 1615g
- wiringMethod
- 端子
- safetyCertification
- CCC,ROHS,CE
