6615.220
6615.220 from Jiefeng Electric. AC Cabinet Filter Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM an…
Product overview

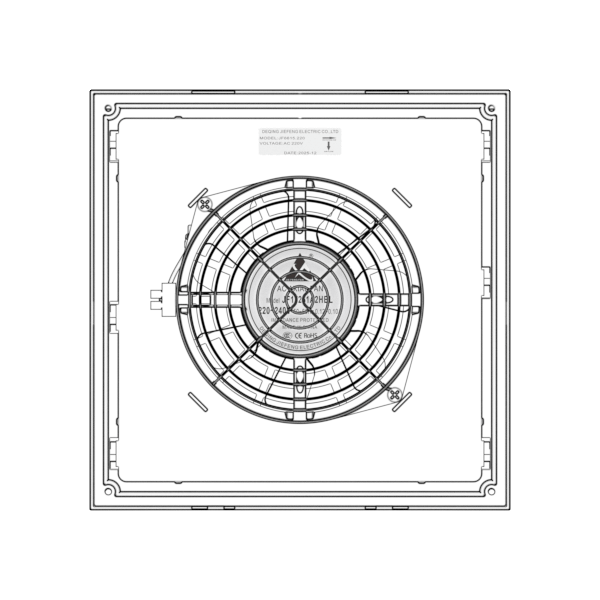

Product dimension drawing： Specification Table: Model Freq Bearing Voltage Current Power Speed Airflow Noise PART.NO. Hz Style VAC AMP Watt RPM CFM dBA 6615.110 50 Ball 110/120 0.48/0.46 52.8/50.6 2400/2500 185/200 48/52 6615.220 50 Ball 220/240 0.25/0.23 55.0/50.6 2400/2500 185/200 48/52 6615.380 50 Ball 380/400 0.13/0.11 49.4/41.8 2400/2500 185/200 48/52
Product specifications
- productType
- 过滤器
- brand
- JIEFENG FAN
- correspondingFan
- 17255
- netCoverMaterial
- ABS
- netCoverColor
- RAL7035
- bladeMaterial
- 金属 Q235
- bladeCount
- 7
- overallSize
- 255*255*120.94MM
- mountingSize
- 232*232MM
- mountingHoleDiameter
- 4MM
- Ventilation Opening Size
- 220*220MM
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V,220V,380V
- ratedPower
- 41.8/55.0W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~75%RH
- speed
- 2400/2500RPM
- airFlow
- 185/200CFM
- noiseLevel
- 48/52dBA
- lifeSpan
- 50000h
- weight
- 1200g
- wiringMethod
- 端子
- safetyCertification
- CCC,ROHS,CE
