6613.220
6613.220 from Jiefeng Electric. AC Cabinet Filter Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM an…
Product overview

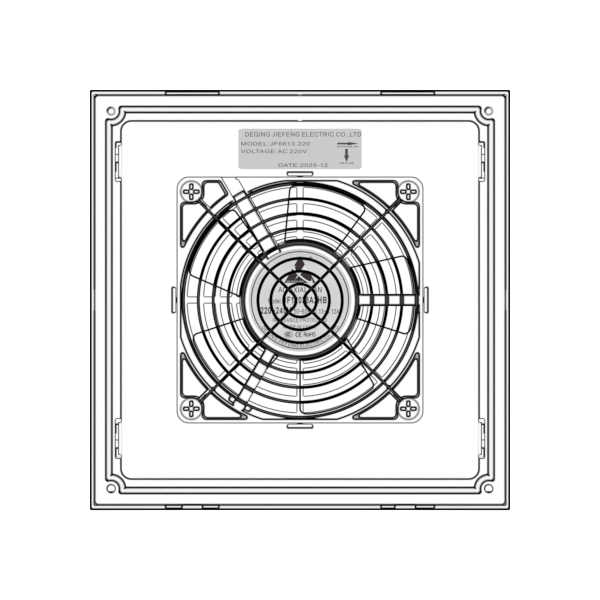

Product dimension drawing： Specification Table: Model Freq Bearing Voltage Current Power Speed Airflow Noise PART.NO. Hz Style VAC AMP Watt RPM CFM dBA 6613.110 50/60 Ball 110/120 0.25/0.21 27.5/23.1 2600/2950 110/120 45/52 6613.220 50/60 Ball 220/240 0.13/0.11 28.6/24.2 2600/2950 110/120 45/52 6613.380 50/60 Ball 380/400 0.07/0.06 26.6/22.8 2600/2950 110/120 45/52
Product specifications
- productType
- 过滤器
- brand
- JIEFENG FAN
- correspondingFan
- 12038
- netCoverMaterial
- ABS
- netCoverColor
- RAL7035
- bladeMaterial
- 金属 Q235
- bladeCount
- 5
- overallSize
- 205*205*103.2MM
- mountingSize
- 184*184MM
- mountingHoleDiameter
- 4MM
- Ventilation Opening Size
- 174.5*174.5MM
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V,220V,380V
- ratedPower
- 22.8/28.6W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~75%RH
- speed
- 2600/2950RPM
- airFlow
- 110/120CFM
- noiseLevel
- 45/52dBA
- lifeSpan
- 50000h
- weight
- 820g
- wiringMethod
- 端子
- safetyCertification
- CCC,ROHS,CE
