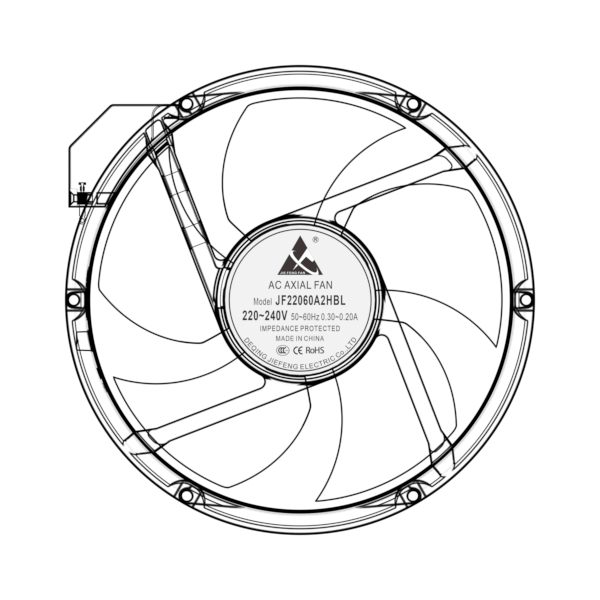

JF22060A2HBL/T-M
JF22060A2HBL/T-M from Jiefeng Electric. AC Axial Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and…
Product overview
Product dimension drawing： Unit：mm Specification Table: Model Freq Bearing Voltage Current Power Speed Airflow Pressure Noise PART.NO. Hz Style VAC AMP Watt RPM CFM mm H ² O dBA JF22060A1HBL 50/60 Ball 110 0.60/0.58 66.0/63.8 2400/2700 360/382 12/16 62/66 JF22060A2HBL 50/60 Ball 220 0.36/0.34 79.2/74.8 2400/2700 360/382 12/16 62/66 JF22060A3HBL 50/60 Ball 380 0.17/0.16 64.6/60.8 2400/2700 360/382 12/16 62/66
Product specifications
- productType
- 轴流风机
- brand
- JIEFENGFAN
- housingType
- 普通铝框
- housingMaterial
- ADC/12
- surfaceTreatment
- 塑粉喷涂
- bladeMaterial
- 金属 Q235
- bladeCount
- 5
- overallSize
- 221.0*221.0*62.0 MM
- mountingSize
- 211.0 EQ SP
- mountingHoleDiameter
- M5.0
- Ventilation Opening Size
- φ196.0 MM
- motorType
- 外转子风机
- insulationClass
- H级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V/220V/380V
- ratedPower
- 38.0/46.2 W
- workingTemperature
- -30℃~+80℃
- workingHumidity
- 30%~70%RH
- speed
- 2600/3050 RPM
- airFlow
- 380/420 CFM
- airPressure
- 0.59/0.67 inch-H₂O
- noiseLevel
- 62/66 dBA
- protectionGrade
- IP43
- lifeSpan
- 40000 h
- weight
- 1208.0 g
- wiringMethod
- 引线/插片
- safetyCertification
- 3C/CE/ROHS
