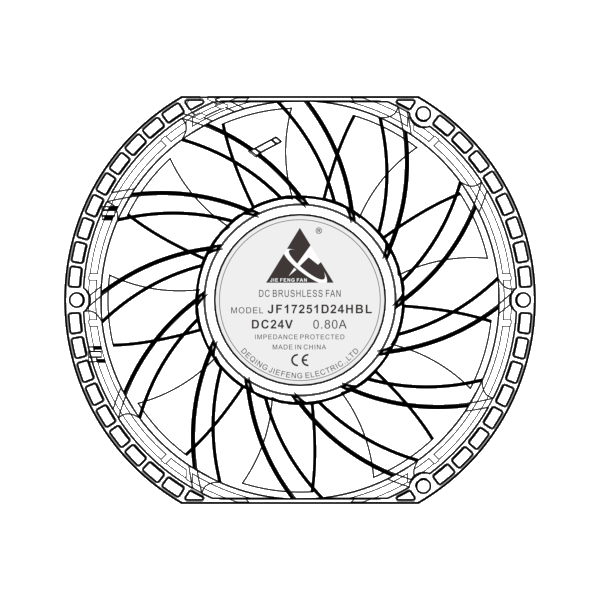

JF17251D24HBL-C
JF17251D24HBL-C from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and…
Product overview
Product dimension drawing: Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF17251D12LBL 12 8.5～13.5 5.60 67.20 4300 10.52 371.90 38.86 1.53 67.8 JF17251D12MBL 12 8.5～13.5 7.50 90.00 5300 11.25 397.40 50.29 1.98 69.2 JF17251D12HBL 12 8.5～13.5 8.20 98.40 6300 12.05 425.70 63.75 2.51 71.7 JF17251D12HHBL 12 8.5～13.5 10.30 123.60 7300 13.92 492.00 99.31 3.91 72.9 JF17251D24LBL 24 18～26.5 2.80 67.20 4300 10.52 371.90 38.86 1.53 67.8 JF17251D24MBL 24 18～26.5 3.75 90.00 5300 11.25 397.40 50.29 1.98 69.2 JF17251D24HBL 24 18～26.5 4.10 98.40 6300 12.05 425.70 63.75 2.51 71.7 JF17251D24HHBL 24 18～26.5 5.15 123.60 7300 13.92 492.00 99.31 3.91 72.9 JF17251D48LBL 48 36～54 1.40 67.20 4300 10.52 371.90 38.86 1.53 67.8 JF17251D48MBL 48 36～54 1.88 90.00 5300 11.25 397.40 50.29 1.98 69.2 JF17251D48HBL 48 36～54 2.05 98.40 6300 12.05 425.70 63.75 2.51 71.7 JF17251D48HHBL 48 36～54 2.58 123.60 7300 13.92 492.00 99.31 3.91 72.9
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 增压塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 9
- overallSize
- 172.5*150.0*50.5 MM
- mountingSize
- 162.0*162.0 MM
- mountingHoleDiameter
- Φ4.3
- Ventilation Opening Size
- φ146.0 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 滚珠铜中管
- powerType
- 直流
- ratedVoltage
- 12V/24V/48V
- ratedPower
- 67.2/123.6 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 4300/7300 RPM
- airFlow
- 371.90/492.00 CFM
- airPressure
- 1.53/3.91 inch-H₂O
- noiseLevel
- 67.8/72.9 dBA
- protectionGrade
- IP43
- lifeSpan
- 50000 h
- weight
- 600.0 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
