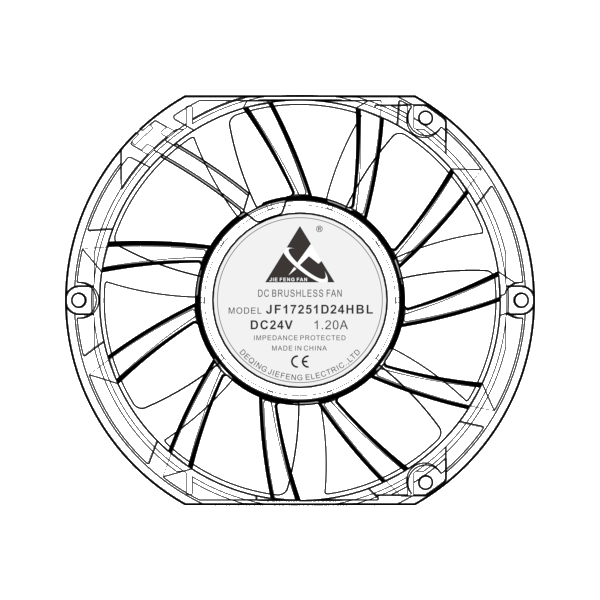

JF17251D24HBL-B
JF17251D24HBL-B from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM and…
Product overview
Product dimension drawing: Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF17251D12LBL 12 8.5～13.5 5.60 67.20 4300 9.87 348.90 33.78 1.33 64.8 JF17251D12MBL 12 8.5～13.5 7.50 90.00 5300 10.60 374.40 45.21 1.78 66.2 JF17251D12HBL 12 8.5～13.5 8.20 98.40 6300 11.40 402.70 58.67 2.31 68.7 JF17251D12HHBL 12 8.5～13.5 10.30 123.60 7300 13.27 469.00 94.23 3.71 69.9 JF17251D24LBL 24 18～26.5 2.80 67.20 4300 9.87 348.90 33.78 1.33 64.8 JF17251D24MBL 24 18～26.5 3.75 90.00 5300 10.60 374.40 45.21 1.78 66.2 JF17251D24HBL 24 18～26.5 4.10 98.40 6300 11.40 402.70 58.67 2.31 68.7 JF17251D24HHBL 24 18～26.5 5.15 123.60 7300 13.27 469.00 94.23 3.71 69.9 JF17251D48LBL 48 36～54 1.40 67.20 4300 9.87 348.90 33.78 1.33 64.8 JF17251D48MBL 48 36～54 1.88 90.00 5300 10.60 374.40 45.21 1.78 66.2 JF17251D48HBL 48 36～54 2.05 98.40 6300 11.40 402.70 58.67 2.31 68.7 JF17251D48HHBL 48 36～54 2.58 123.60 7300 13.27 469.00 94.23 3.71 69.9
Product specifications
- productType
- 直流轴流风机
- brand
- JIEFENGFAN
- housingType
- 增压塑胶框
- housingMaterial
- 塑料PBT+28%GF
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 7
- overallSize
- 172.5*150.0*50.3 MM
- mountingSize
- 162.0*162.0 MM
- mountingHoleDiameter
- Φ4.3
- Ventilation Opening Size
- φ146.0 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 直流
- ratedVoltage
- 12V/24V/48V
- ratedPower
- 67.2/123.6 W
- workingTemperature
- -30℃~+70℃
- workingHumidity
- 30%~70%RH
- speed
- 4300/7300 RPM
- airFlow
- 348.90/469.00 CFM
- airPressure
- 1.33/3.71 mmH₂O
- noiseLevel
- 69.9 dBA
- protectionGrade
- IP43
- lifeSpan
- 50000 h
- weight
- 590 g
- wiringMethod
- 引线/端子
- safetyCertification
- CE/ROHS
- customFunction
- RD/FG/PWM/堵转/缓启
