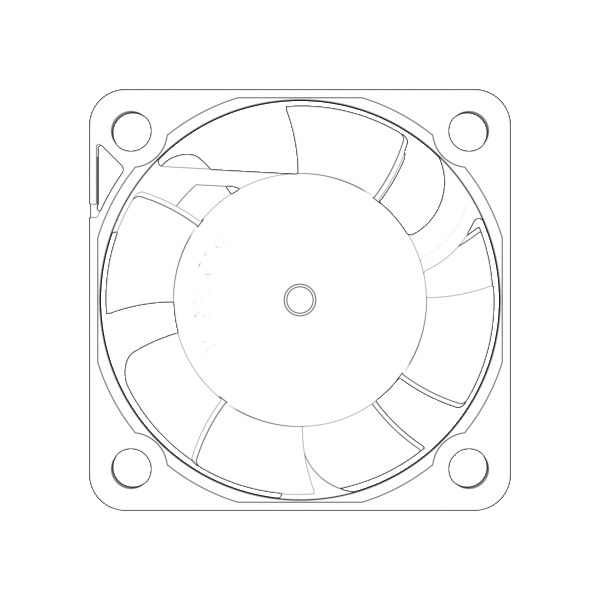

JF4056D24HHBL-4/5
JF4056D24HHBL-4/5 from Jiefeng Electric. DC Axial Fans for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM a…
Reliable Thermal Management Technology
Product dimension drawing： Unit: mm Specification Table: Model Voltage Operating Voltage Range Current Power Speed Airflow Pressure Noise PART.NO. VDC VDC AMP Watt RPM M ³ /min CFM mmH2O InH2O dBA JF4056D12LBL 12 8.5～13.5 0.52 6.24 14000 0.65 22.95 36.83 1.45 54.0 JF4056D12MBL 12 8.5～13.5 0.60 7.20 15000 0.70 24.72 41.91 1.65 56.0 JF4056D12HBL 12 8.5～13.5 0.90 10.80 16700 0.77 27.19 51.05 2.01 58.0 JF4056D12HHBL 12 8.5～13.5 1.15 13.80 19000 0.87 30.72 64.26 2.53 61.0 JF4056D24LBL 24 18～26.5 0.26 6.24 14000 0.65 22.95 36.83 1.45 54.0 JF4056D24MBL 24 18～26.5 0.30 7.20 15000 0.70 24.72 41.91 1.65 56.0 JF4056D24HBL 24 18～26.5 0.45 10.80 16700 0.77 27.19 51.05 2.01 58.0 JF4056D24HHBL 24 18～26.5 0.58 13.80 19000 0.87 30.72 64.26 2.53 61.0
Product Parameters
- Product Type
- 轴流风机
- Brand
- JIEFENGFAN
- Frame Type
- 普通塑胶框
- Housing Material
- 塑料PBT+28%GF
- Impeller Material
- 塑料 PBT+28%GF
- Blade Quantity
- 4/5
- Overall Size
- 39.9*39.9*55.9 MM
- Mounting Size
- 32.0*32.0 MM
- Mounting Hole Diameter
- Φ3.5
- Ventilation Opening Size
- φ38.0 MM
- Motor Type
- 无刷电机
- Insulation Class
- B级
- Drive Type
- 滚珠
- Power Type
- 直流
- Rated Voltage
- 12V/24V
- Rated Power
- 6.24/13.8 W
- Working Temperature
- -30℃~+70℃
- Working Humidity
- 30%~70%RH
- Speed
- 14000/19000 RPM
- Air Flow
- 22.95/30.72 CFM
- Air Pressure
- 1.45/2.53 inch-H₂O
- Noise Level
- 54.0/61.0 dBA
- Protection Grade
- IP43
- Life Span
- 50000 h
- Weight
- 85.0 g
- Connection Method
- 引线/端子
- Safety Certification
- CE/ROHS
- Custom Function
- RD/FG/PWM/堵转/缓启
