JF15015D24HBW
Product Parameters:
- Brand：
- JIEFENGFAN
- Corresponding Fan：
- 15050
- Frame Type：
- Standard Aluminum Frame
- Housing Material：
- ADC/12
- Surface Treatment：
- Powder Coating
- Impeller Material：
- Plastic PBT+28%GF
- Blade Quantity：
- 5
- Overall Size：
- 150.0*131.5 MM
- Mounting Size：
- φ145.0 MM
- Ventilation Opening Size：
- φ151.0 MM
- Motor Type：
- Brushless Motor
- Insulation Class：
- Class B
- Drive Type：
- Ball Bearing
- Power Type：
- DC
- Rated Voltage：
- 12V/24V/48V
- Rated Power：
- 72W
- Working Temperature：
- -30℃~+70℃
- Working Humidity：
- 30%~70%RH
- Speed：
- 4000 RPM
- Air Flow：
- 283.0 CFM
- Air Pressure：
- 1.08 inch-H₂O
- Noise Level：
- 65.5 dBA
- Protection Grade：
- IP43
- Life Span：
- 50000 h
- Weight：
- 657.0 g
- Connection Method：
- Lead Wire / Terminal
- Safety Certification：
- CE/ROHS
- Custom Function：
- Soft Start/Locked Rotor Protection/RD/FG/PWM

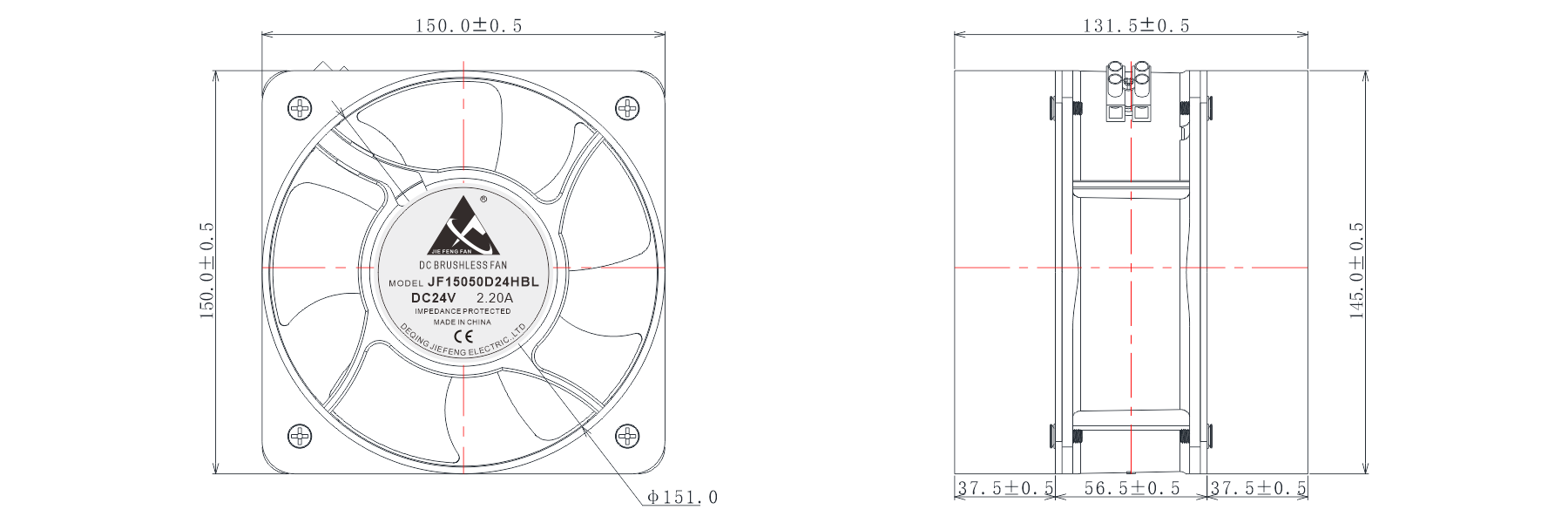

Product dimension drawing:
Unit:mm
Technical Specifications:
| Model | Voltage | Operating Voltage Range |
Current | Power | Speed | Airflow | Pressure | Noise | ||
| PART.NO. | VDC | VDC | AMP | Watt | RPM | M³/min | CFM | mmH2O | InH2O | dBA |
| JF15015D12HBL | 12 | 8.5～13.5 | 6.00 | 72.00 | 4000 | 8.01 | 283.00 | 27.36 | 1.08 | 65.5 |
| JF15015D24HBL | 24 | 18～26.5 | 3.00 | 72.00 | 4000 | 8.01 | 283.00 | 27.36 | 1.08 | 65.5 |
| JF15015D48HBL | 48 | 36～54 | 1.50 | 72.00 | 4000 | 8.01 | 283.00 | 27.36 | 1.08 | 65.5 |
