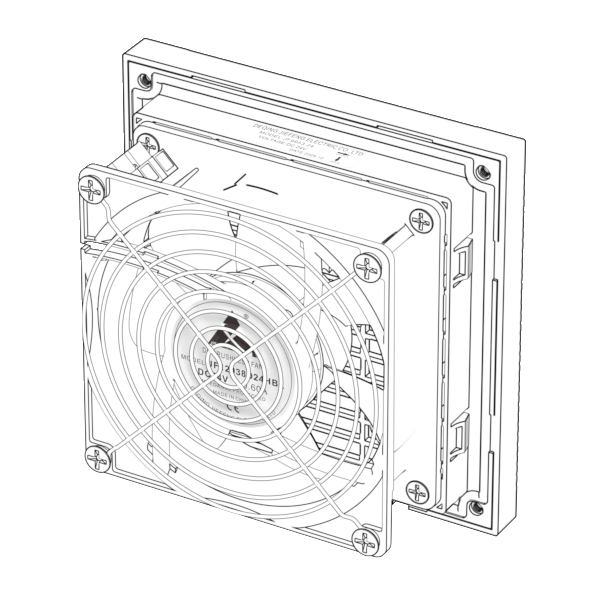

JW9903.24
Product Parameters:
- Brand：
- JIEFENGFAN
- Corresponding Fan：
- 8025, 8038, 9225, 9238, 12025, 12038
- Guard Material：
- ABS
- Guard Color：
- RAL7032/RAL7035/RAL9005
- Impeller Material：
- Plastic PBT+28%GF
- Blade Quantity：
- 7
- Overall Size：
- 148.3*148.3 MM
- Mounting Size：
- 131.0*131.0 MM
- Mounting Hole Diameter：
- M4.0
- Ventilation Opening Size：
- 124.0*124.0 MM
- Motor Type：
- Brushless Motor
- Insulation Class：
- Class B
- Drive Type：
- Ball Bearing
- Power Type：
- DC
- Rated Voltage：
- 12V/24V/48V
- Rated Power：
- 1.56/7.20 W
- Working Temperature：
- -10℃~+55℃
- Working Humidity：
- 30%~70%RH
- Speed：
- 2500/3000 RPM
- Air Flow：
- 17.65/55.63 CFM
- Noise Level：
- 48 dBA
- Protection Grade：
- IP54
- Life Span：
- 40000 h
- Weight：
- 245.8/353.5 g
- Connection Method：
- Lead Wire / Terminal/Terminal
- Safety Certification：
- 3C/CE/ROHS
Product dimension drawing:
Unit: mm
Specification Table:
| Model | Voltage | Bearing | Current | Power | Speed | Airflow | Noise | |
| PART.NO. | VDC | Bearing | AMP | Watt | RPM | M³/min | CFM | dBA |
| JW9903.12 | 12 | BALL | 0.13 | 1.56 | 3000 | 0.5 | 17.65 | 31.0 |
| JW9903.24 | 24 | BALL | 0.07 | 1.68 | 3000 | 0.5 | 17.65 | 31.0 |
| JW9903.48 | 48 | BALL | 0.04 | 1.68 | 3000 | 0.5 | 17.65 | 31.0 |
| JW9913.12 | 12 | BALL | 0.50 | 6.00 | 4000 | 0.71 | 24.95 | 46.8 |
| JW9913.24 | 24 | BALL | 0.25 | 6.00 | 4000 | 0.71 | 24.95 | 46.8 |
| JW9913.48 | 48 | BALL | 0.13 | 6.00 | 4000 | 0.71 | 24.95 | 46.8 |
| JW9923.12 | 12 | BALL | 0.20 | 2.40 | 3000 | 0.69 | 24.50 | 39.1 |
| JW9923.24 | 24 | BALL | 0.10 | 2.40 | 3000 | 0.69 | 24.50 | 39.1 |
| JW9923.48 | 48 | BALL | 0.05 | 2.40 | 3000 | 0.69 | 24.50 | 39.1 |
| JW9933.12 | 12 | BALL | 0.50 | 6.00 | 3500 | 1.00 | 35.43 | 48.0 |
| JW9933.24 | 24 | BALL | 0.25 | 6.00 | 3500 | 1.00 | 35.43 | 48.0 |
| JW9933.48 | 48 | BALL | 0.13 | 6.00 | 3500 | 1.00 | 35.43 | 48.0 |
| JW9943.12 | 12 | BALL | 0.31 | 3.72 | 2500 | 1.31 | 46.20 | 42.1 |
| JW9943.24 | 24 | BALL | 0.16 | 3.72 | 2500 | 1.31 | 46.20 | 42.1 |
| JW9943.48 | 48 | BALL | 0.08 | 3.72 | 2500 | 1.31 | 46.20 | 42.1 |
| JW9953.12 | 12 | BALL | 0.60 | 7.20 | 3000 | 1.58 | 55.63 | 47.7 |
| JW9953.24 | 24 | BALL | 0.30 | 7.20 | 3000 | 1.58 | 55.63 | 47.7 |
| JW9953.48 | 48 | BALL | 0.15 | 7.20 | 3000 | 1.58 | 55.63 | 47.7 |
