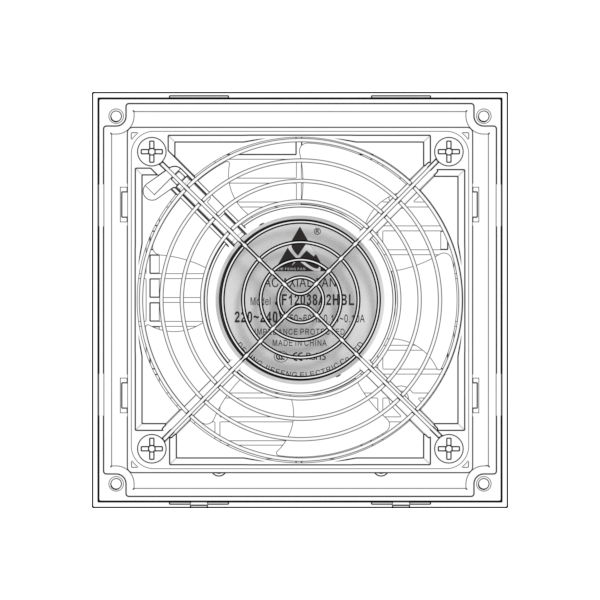

JW9903.220
Product Parameters:
- Brand：
- JIEFENGFAN
- Corresponding Fan：
- 8025, 8038, 9225, 9238, 11025, 12025, 12038
- Guard Material：
- ABS
- Guard Color：
- RAL7032/RAL7035/RAL9005
- Impeller Material：
- Plastic PBT+28%GF
- Blade Quantity：
- 5/7
- Overall Size：
- 148.3*148.3 MM
- Mounting Size：
- 131.0*131.0 MM
- Mounting Hole Diameter：
- M4.0
- Ventilation Opening Size：
- 124.0*124.0 MM
- Motor Type：
- Shaded Pole Motor
- Insulation Class：
- Class B
- Drive Type：
- Ball Bearing
- Power Type：
- AC
- Rated Voltage：
- 110V/220V/380V
- Rated Power：
- 13.2/30.4 W
- Working Temperature：
- -10℃~+55℃
- Working Humidity：
- 30%~70%RH
- Speed：
- 2200/3100 RPM
- Air Flow：
- 9.0/47.5 CFM
- Noise Level：
- 45 dBA
- Protection Grade：
- IP54
- Life Span：
- 40000 h
- Weight：
- 424.8/647.9 g
- Connection Method：
- Lead Wire / Terminal/Terminal
- Safety Certification：
- 3C/CE/ROHS
Product dimension drawing:
Unit: mm
Specification Table:
| Model | Voltage | Freq | Bearing | Current | Power | Speed | Airflow | Noise | |
| PART.NO. | VAC | Freq | Bearing | AMP | Watt | RPM | M³/min | CFM | dBA |
| JW9903.110 | 110 | 50/60 | BALL | 0.14/0.12 | 15.4/13.2 | 2400/2900 | 0.25/0.31 | 9.0/11.0 | 27/32 |
| JW9903.220 | 220 | 50/60 | BALL | 0.08/0.07 | 17.6/15.4 | 2300/2800 | 0.25/0.31 | 9.0/11.0 | 27/32 |
| JW9903.380 | 380 | 50/60 | BALL | 0.05/0.04 | 19.0/15.2 | 2400/2900 | 0.25/0.31 | 9.0/11.0 | 27/32 |
| JW9913.110 | 110 | 50/60 | BALL | 0.17/0.15 | 18.7/16.5 | 2500/3000 | 0.33/0.4 | 11.5/14 | 30/35 |
| JW9913.220 | 220 | 50/60 | BALL | 0.09/0.07 | 19.8/15.4 | 2500/3000 | 0.33/0.4 | 11.5/14 | 30/35 |
| JW9913.380 | 380 | 50/60 | BALL | 0.05/0.04 | 19.0/15.2 | 2500/3000 | 0.33/0.4 | 11.5/14 | 30/35 |
| JW9923.110 | 110 | 50/60 | BALL | 0.17/0.15 | 18.7/16.5 | 2450/3000 | 0.42/0.53 | 15.0/18.7 | 34/40 |
| JW9923.220 | 220 | 50/60 | BALL | 0.09/0.07 | 19.8/15.4 | 2450/3000 | 0.42/0.53 | 15.0/18.7 | 34/40 |
| JW9923.380 | 380 | 50/60 | BALL | 0.05/0.04 | 19.0/15.2 | 2450/3000 | 0.42/0.53 | 15.0/18.7 | 34/40 |
| JW9933.110 | 110 | 50/60 | BALL | 0.19/0.16 | 20.9/17.6 | 2700/3100 | 0.55/0.65 | 19.5/23.0 | 38/48 |
| JW9933.220 | 220 | 50/60 | BALL | 0.10/0.08 | 22.0/17.6 | 2700/3100 | 0.55/0.65 | 19.5/23.0 | 38/48 |
| JW9933.380 | 380 | 50/60 | BALL | 0.05/0.04 | 19.0/15.2 | 2700/3100 | 0.55/0.65 | 19.5/23.0 | 38/48 |
| JW9943.110 | 110 | 50/60 | BALL | 0.17/0.13 | 18.7/14.3 | 2300/2750 | 0.82/0.96 | 29.0/34 | 36/38 |
| JW9943.220 | 220 | 50/60 | BALL | 0.09/0.07 | 19.8/15.4 | 2300/2750 | 0.82/0.96 | 29.0/34 | 36/38 |
| JW9943.380 | 380 | 50/60 | BALL | 0.05/0.04 | 19.0/15.2 | 2300/2750 | 0.82/0.96 | 29.0/34 | 36/38 |
| JW9953.110 | 110 | 50/60 | BALL | 0.17/0.13 | 18.7/14.3 | 2200/2400 | 0.89/1.02 | 31.5/36.0 | 39/41 |
| JW9953.220 | 220 | 50/60 | BALL | 0.09/0.07 | 19.8/15.4 | 2200/2400 | 0.89/1.02 | 31.5/36.0 | 39/41 |
| JW9953.380 | 380 | 50/60 | BALL | 0.05/0.04 | 19.0/15.2 | 2200/2400 | 0.89/1.02 | 31.5/36.0 | 39/41 |
| JW9963.110 | 110 | 50/60 | BALL | 0.23/0.21 | 25.3/23.1 | 2600/3100 | 1.27/1.35 | 45.0/47.5 | 41/45 |
| JW9963.220 | 220 | 50/60 | BALL | 0.12/0.10 | 26.4/22.0 | 2600/3100 | 1.27/1.35 | 45.0/47.5 | 41/45 |
| JW9963.380 | 380 | 50/60 | BALL | 0.08/0.07 | 30.4/26.6 | 2600/3100 | 1.27/1.35 | 45.0/47.5 | 41/45 |
