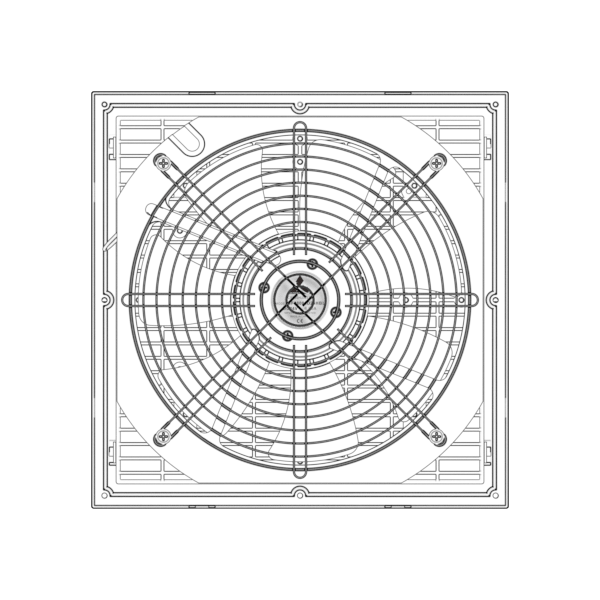

JW8806.24
Product Parameters:
- Brand：
- JIEFENGFAN
- Corresponding Fan：
- 17251, 20060, 22060, 22580, 25489, 28080
- Guard Material：
- ABS
- Guard Color：
- RAL7032/RAL7035/RAL9005
- Impeller Material：
- Plastic PBT+28%GF
- Blade Quantity：
- 5/6/7
- Overall Size：
- 321.0*321.0 MM
- Mounting Size：
- 299.5*299.5 MM
- Mounting Hole Diameter：
- M4.0
- Ventilation Opening Size：
- 282.0*282.0 MM
- Motor Type：
- Brushless Motor
- Insulation Class：
- Class B
- Drive Type：
- Ball Bearing
- Power Type：
- DC
- Rated Voltage：
- 12V/24V/48V
- Rated Power：
- 28.80/129.60 W
- Working Temperature：
- -10℃~+55℃
- Working Humidity：
- 30%~70%RH
- Speed：
- 2500/3000 RPM
- Air Flow：
- 104.70/580.21 CFM
- Noise Level：
- 71.3 dBA
- Protection Grade：
- IP54
- Life Span：
- 40000 h
- Weight：
- 1167.1/3129.3 g
- Connection Method：
- Lead Wire / Terminal/Terminal
- Safety Certification：
- 3C/CE/ROHS
Product dimension drawing:
Unit: mm
Specification Table:
| Model | Voltage | Bearing | Current | Power | Speed | Airflow | Noise | |
| PART.NO. | VDC | Bearing | AMP | Watt | RPM | M³/min | CFM | dBA |
| JW8806.12 | 12 | BALL | 2.40 | 28.80 | 3000 | 2.96 | 104.70 | 58.3 |
| JW8806.24 | 24 | BALL | 1.20 | 28.80 | 3000 | 2.96 | 104.70 | 58.3 |
| JW8806.48 | 48 | BALL | 0.60 | 28.80 | 3000 | 2.96 | 104.70 | 58.3 |
| JW8816.12 | 12 | BALL | 2.92 | 35.04 | 2500 | 7.27 | 256.70 | 60.0 |
| JW8816.24 | 24 | BALL | 1.39 | 33.36 | 2500 | 7.27 | 256.70 | 60.0 |
| JW8816.48 | 48 | BALL | 0.66 | 31.68 | 2500 | 7.27 | 256.70 | 60.0 |
| JW8826.12 | 12 | BALL | 2.92 | 35.04 | 2500 | 7.27 | 256.70 | 60.0 |
| JW8826.24 | 24 | BALL | 1.39 | 33.36 | 2500 | 7.27 | 256.70 | 60.0 |
| JW8826.48 | 48 | BALL | 0.66 | 31.68 | 2500 | 7.27 | 256.70 | 60.0 |
| JW8836.12 | 12 | BALL | 4.00 | 48.00 | 2700 | 9.61 | 339.35 | 66.9 |
| JW8836.24 | 24 | BALL | 2.00 | 48.00 | 2700 | 9.61 | 339.35 | 66.9 |
| JW8836.48 | 48 | BALL | 1.00 | 48.00 | 2700 | 9.61 | 339.35 | 66.9 |
| JW8846.12 | 12 | BALL | 5.50 | 66.00 | 2500 | 9.79 | 345.90 | 71.2 |
| JW8846.24 | 24 | BALL | 2.90 | 69.60 | 2500 | 9.79 | 345.90 | 71.2 |
| JW8846.48 | 48 | BALL | 1.40 | 67.20 | 2500 | 9.79 | 345.90 | 71.2 |
| JW8856.12 | 12 | BALL | 10.80 | 129.60 | 2800 | 16.43 | 580.21 | 71.3 |
| JW8856.24 | 24 | BALL | 5.40 | 129.60 | 2800 | 16.43 | 580.21 | 71.3 |
| JW8856.48 | 48 | BALL | 2.70 | 129.60 | 2800 | 16.43 | 580.21 | 71.3 |
