JW8807.220
JW8807.220 from Jiefeng Electric. AC Cabinet Filter Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM …
Product overview

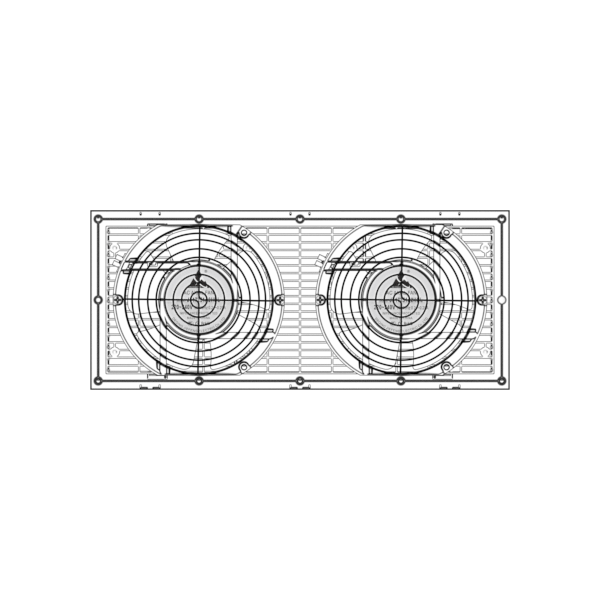

Product dimension drawing: Unit: mm Specification Table: Model Voltage Freq Bearing Current Power Speed Airflow Noise PART.NO. VAC Freq Bearing AMP Watt RPM M ³ /min CFM dBA JW8807.110 110 50/60 BALL 0.17/0.13 18.7/14.3 2200/2400 0.89/1.02 31.5/36.0 39/41 JW8807.220 220 50/60 BALL 0.09/0.07 19.8/15.4 2200/2400 0.89/1.02 31.5/36.0 39/41 JW8807.380 380 50/60 BALL 0.05/0.04 19.0/15.2 2200/2400 0.89/1.02 31.5/36.0 39/41 JW8817.110 110 50/60 BALL 0.23/0.21 25.3/23.1 2600/3100 1.27/1.35 45.0/47.5 41/45 JW8817.220 220 50/60 BALL 0.12/0.10 26.4/22.0 2600/3100 1.27/1.35 45.0/47.5 41/45 JW8817.380 380 50/60 BALL 0.08/0.07 30.4/26.6 2600/3100 1.27/1.35 45.0/47.5 41/45 JW8827.110 110 50/60 BALL 0.37/0.35 40.7/38.5 2600/2800 2.27/2.69 80.0/95.0 52/59 JW8827.220 220 50/60 BALL 0.19/0.17 41.8/37.4 2600/2800 2.27/2.69 80.0/95.0 52/59 JW8827.380 380 50/60 BALL 0.09/0.08 34.2/30.4 2600/2800 2.27/2.69 80.0/95.0 52/59 JW8837.110 110 50/60 BALL 0.42/0.40 46.2/44.0 2750/3200 2.48/2.83 87.5/100 53/59 JW8837.220 220 50/60 BALL 0.22/0.20 48.4/44.0 2750/3200 2.48/2.83 87.5/100 53/59 JW8837.380 380 50/60 BALL 0.12/0.11 45.6/41.8 2750/3200 2.48/2.83 87.5/100 53/59
Product specifications
- productType
- 过滤器
- brand
- JIEFENGFAN
- correspondingFan
- 12025,12038,17243,17251
- netCoverMaterial
- ABS
- netCoverColor
- RAL7032/RAL7035/RAL9005
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 5
- overallSize
- 421.0*180.0 MM
- mountingSize
- 404.0*162.0 MM
- mountingHoleDiameter
- M4.0
- Ventilation Opening Size
- 390.0*149.0 MM
- motorType
- 罩极电机/感应异步外转子
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V/220V/380V
- ratedPower
- 14.3/48.4 W
- workingTemperature
- -10℃~+55℃
- workingHumidity
- 30%~70%RH
- speed
- 2200/3200 RPM
- airFlow
- 31.5/100 CFM
- noiseLevel
- 59 dBA
- protectionGrade
- IP54
- lifeSpan
- 40000 h
- weight
- 777.4/1317.1 g
- wiringMethod
- 引线/端子/插片
- safetyCertification
- 3C/CE/ROHS
