JW8806.220
JW8806.220 from Jiefeng Electric. AC Cabinet Filter Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM …
Product overview

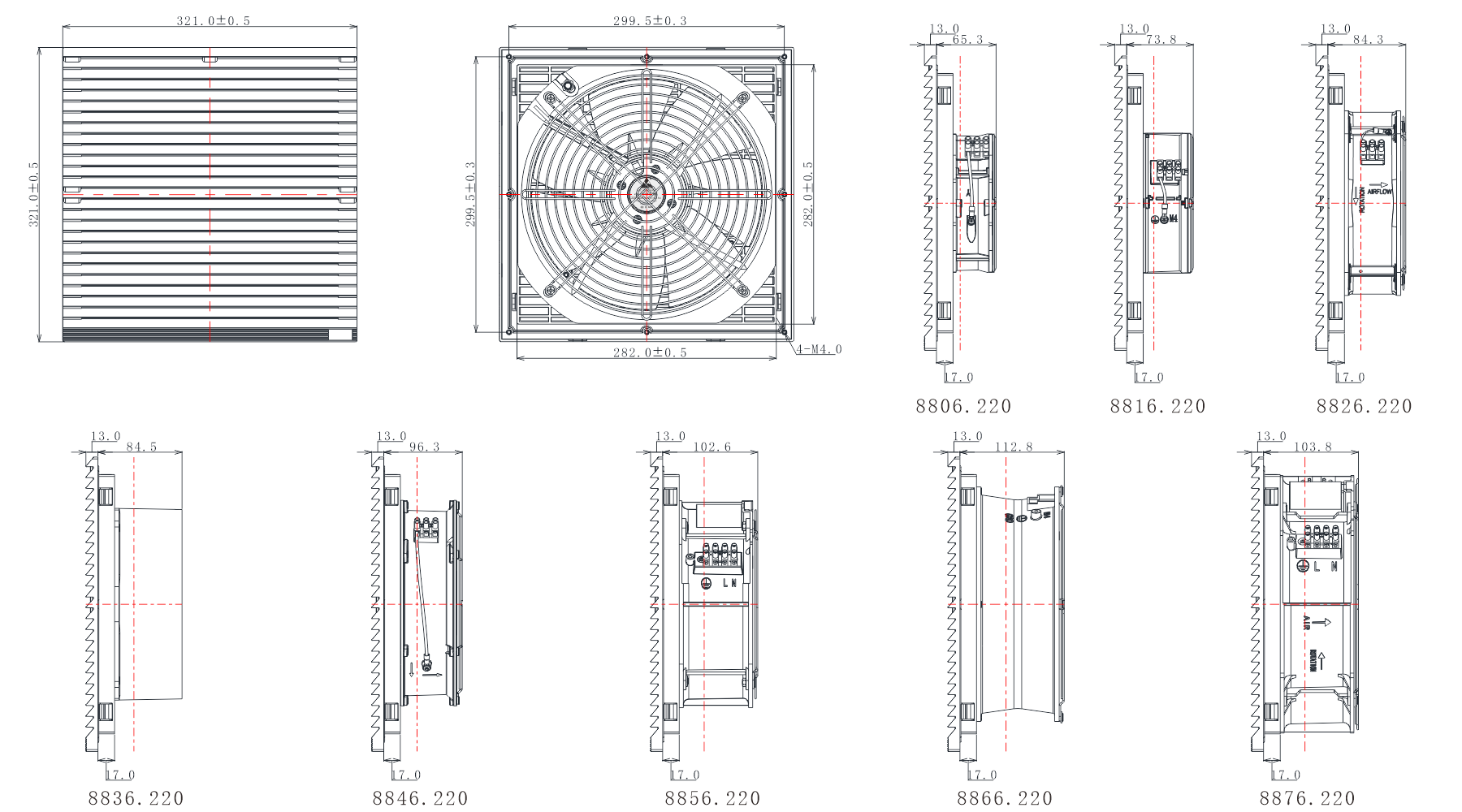

Product dimension drawing: Unit: mm Specification Table: Model Voltage Freq Bearing Current Power Speed Airflow Noise PART.NO. VAC Freq Bearing AMP Watt RPM M ³ /min CFM dBA JW8806.110 110 50/60 BALL 0.37/0.35 40.7/38.5 2600/2800 2.27/2.69 80.0/95.0 52/59 JW8806.220 220 50/60 BALL 0.19/0.17 41.8/37.4 2600/2800 2.27/2.69 80.0/95.0 52/59 JW8806.380 380 50/60 BALL 0.09/0.08 34.2/30.4 2600/2800 2.27/2.69 80.0/95.0 52/59 JW8816.110 110 50/60 BALL 0.42/0.40 46.2/44.0 2750/3200 2.48/2.83 87.5/100.0 53/59 JW8816.220 220 50/60 BALL 0.22/0.20 48.4/44.0 2750/3200 2.48/2.83 87.5/100.0 53/59 JW8816.380 380 50/60 BALL 0.12/0.11 45.6/41.8 2750/3200 2.48/2.83 87.5/100.0 53/59 JW8826.110 110 50/60 BALL 0.60/0.58 66.0/63.8 2400/2700 5.10/5.41 180.0/191.0 62/66 JW8826.220 220 50/60 BALL 0.36/0.34 79.2/74.8 2400/2700 5.10/5.41 180.0/191.0 62/66 JW8826.380 380 50/60 BALL 0.17/0.16 64.6/60.8 2400/2700 5.10/5.41 180.0/191.0 62/66 JW8836.110 110 50/60 BALL 0.60/0.58 66.0/63.8 2400/2700 5.10/5.41 180.0/191.0 62/66 JW8836.220 220 50/60 BALL 0.36/0.34 79.2/74.8 2400/2700 5.10/5.41 180.0/191.0 62/66 JW8836.380 380 50/60 BALL 0.17/0.16 64.6/60.8 2400/2700 5.10/5.41 180.0/191.0 62/66 JW8846.110 110 50/60 BALL 0.43/0.35 47.3/38.5 2600/2800 5.88/6.51 207.5/230.0 70/75 JW8846.220 220 50/60 BALL 0.26/0.20 57.2/44.0 2600/2800 5.88/6.51 207.5/230.0 70/75 JW8846.380 380 50/60 BALL 0.15/0.13 57.0/49.4 2600/2800 5.88/6.51 207.5/230.0 70/75 JW8856.110 110 50/60 BALL 0.70/0.58 77.0/63.8 2550/2800 7.50/8.50 265.0/300.0 65/68 JW8856.220 220 50/60 BALL 0.40/0.30 88.0/66.0 2550/2800 7.50/8.50 265.0/300.0 65/68 JW8856.380 380 50/60 BALL 0.25/0.20 95.0/76.0 2550/2800 7.50/8.50 265.0/300.0 65/68 JW8866.110 110 50/60 BALL 1.00/0.90 110.0/99.0 2500/2700 10.76/11.30 380.0/400.0 68/70 JW8866.220 220 50/60 BALL 0.46/0.39…
Product specifications
- productType
- 过滤器
- brand
- JIEFENGFAN
- correspondingFan
- 17243,17251,20060,22060,21070,22580,25489,28080
- netCoverMaterial
- ABS
- netCoverColor
- RAL7032/RAL7035/RAL9005
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 5/6/7/9
- overallSize
- 321.0*321.0 MM
- mountingSize
- 299.5*299.5 MM
- mountingHoleDiameter
- M4.0
- Ventilation Opening Size
- 282.0*282.0 MM
- motorType
- 电容式电机/感应异步外转子
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V/220V/380V
- ratedPower
- 30.4/180.4 W
- workingTemperature
- -10℃~+55℃
- workingHumidity
- 30%~70%RH
- speed
- 2400/3200 RPM
- airFlow
- 80.0/565.0 CFM
- noiseLevel
- 75 dBA
- protectionGrade
- IP54
- lifeSpan
- 40000 h
- weight
- 1362.1/3549.3 g
- wiringMethod
- 引线/端子/插片
- safetyCertification
- 3C/CE/ROHS
