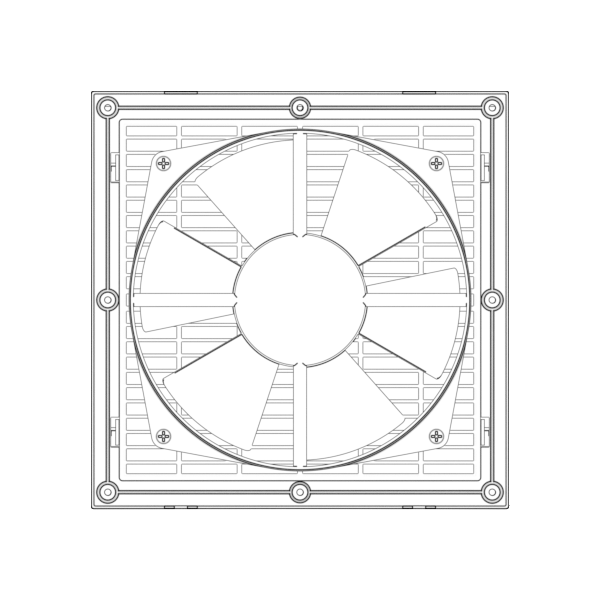

JW8805.220
Product Parameters:
- Brand：
- JIEFENGFAN
- Corresponding Fan：
- 17243, 17251, 18060, 20060, 21070
- Guard Material：
- ABS
- Guard Color：
- RAL7032/RAL7035/RAL9005
- Impeller Material：
- Plastic PBT+28%GF
- Blade Quantity：
- 5/6
- Overall Size：
- 256.0*256.0 MM
- Mounting Size：
- 234.0*234.0 MM
- Mounting Hole Diameter：
- M4.0
- Ventilation Opening Size：
- 221.5*221.5 MM
- Motor Type：
- Shaded Pole Motor/电容式Motor/感应异步External Rotor
- Insulation Class：
- Class B
- Drive Type：
- Ball Bearing
- Power Type：
- AC
- Rated Voltage：
- 110V/220V/380V
- Rated Power：
- 30.4/79.2 W
- Working Temperature：
- -10℃~+55℃
- Working Humidity：
- 30%~70%RH
- Speed：
- 2400/3200 RPM
- Air Flow：
- 80.0/230.0 CFM
- Noise Level：
- 75 dBA
- Protection Grade：
- IP54
- Life Span：
- 40000 h
- Weight：
- 1134.1/1681.3 g
- Connection Method：
- Lead Wire / Terminal/Terminal
- Safety Certification：
- 3C/CE/ROHS
Product dimension drawing:
Unit: mm
Specification Table:
| Model | Voltage | Freq | Bearing | Current | Power | Speed | Airflow | Noise | |
| PART.NO. | VAC | Freq | Bearing | AMP | Watt | RPM | M³/min | CFM | dBA |
| JW8805.110 | 110 | 50/60 | BALL | 0.37/0.35 | 40.7/38.5 | 2600/2800 | 2.27/2.69 | 80.0/95.0 | 52/59 |
| JW8805.220 | 220 | 50/60 | BALL | 0.19/0.17 | 41.8/37.4 | 2600/2800 | 2.27/2.69 | 80.0/95.0 | 52/59 |
| JW8805.380 | 380 | 50/60 | BALL | 0.09/0.08 | 34.2/30.4 | 2600/2800 | 2.27/2.69 | 80.0/95.0 | 52/59 |
| JW8815.110 | 110 | 50/60 | BALL | 0.42/0.40 | 46.2/44.0 | 2750/3200 | 2.48/2.83 | 87.5/100.0 | 53/59 |
| JW8815.220 | 220 | 50/60 | BALL | 0.22/0.20 | 48.4/44.0 | 2750/3200 | 2.48/2.83 | 87.5/100.0 | 53/59 |
| JW8815.380 | 380 | 50/60 | BALL | 0.12/0.11 | 45.6/41.8 | 2750/3200 | 2.48/2.83 | 87.5/100.0 | 53/59 |
| JW8825.110 | 110 | 50/60 | BALL | 0.50/0.48 | 55.0/52.8 | 2700/2800 | 3.75/4.25 | 132.5/150.0 | 60/64 |
| JW8825.220 | 220 | 50/60 | BALL | 0.27/0.25 | 59.4/55.0 | 2700/2800 | 3.75/4.25 | 132.5/150.0 | 60/64 |
| JW8825.380 | 380 | 50/60 | BALL | 0.13/0.12 | 49.4/45.6 | 2700/2800 | 3.75/4.25 | 132.5/150.0 | 60/64 |
| JW8835.110 | 110 | 50/60 | BALL | 0.60/0.58 | 66.0/63.8 | 2400/2700 | 5.10/5.41 | 180.0/191.0 | 62/66 |
| JW8835.220 | 220 | 50/60 | BALL | 0.36/0.34 | 79.2/74.8 | 2400/2700 | 5.10/5.41 | 180.0/191.0 | 62/66 |
| JW8835.380 | 380 | 50/60 | BALL | 0.17/0.16 | 64.6/60.8 | 2400/2700 | 5.10/5.41 | 180.0/191.0 | 62/66 |
| JW8845.110 | 110 | 50/60 | BALL | 0.43/0.35 | 47.3/38.5 | 2600/2800 | 5.88/6.51 | 207.5/230.0 | 70/75 |
| JW8845.220 | 220 | 50/60 | BALL | 0.26/0.20 | 57.2/44.0 | 2600/2800 | 5.88/6.51 | 207.5/230.0 | 70/75 |
| JW8845.380 | 380 | 50/60 | BALL | 0.15/0.13 | 57.0/49.4 | 2600/2800 | 5.88/6.51 | 207.5/230.0 | 70/75 |
