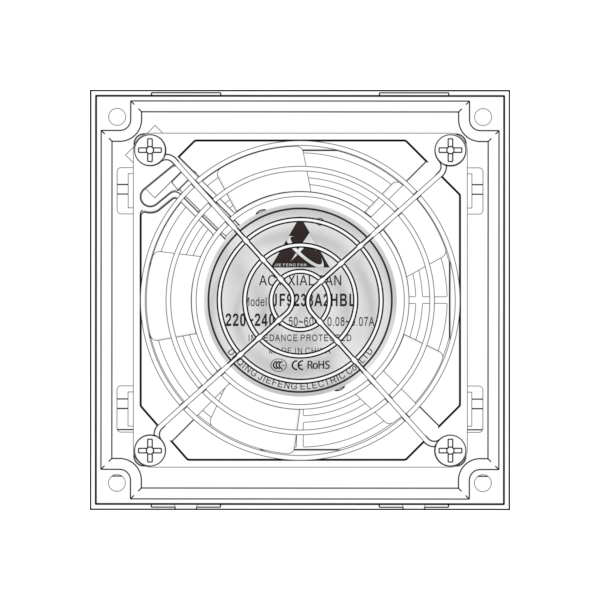

JW8802.220
Product Parameters:
- Brand：
- JIEFENGFAN
- Corresponding Fan：
- 9225, 9238
- Guard Material：
- ABS
- Guard Color：
- RAL7032/RAL7035/RAL9005
- Impeller Material：
- Plastic PBT+28%GF
- Blade Quantity：
- 5
- Overall Size：
- 116.0*116.0 MM
- Mounting Size：
- 101.0*101.0 MM
- Mounting Hole Diameter：
- Φ4.3
- Ventilation Opening Size：
- 92.0*92.0 MM
- Motor Type：
- Shaded Pole Motor
- Insulation Class：
- Class B
- Drive Type：
- Ball Bearing
- Power Type：
- AC
- Rated Voltage：
- 110V/220V/380V
- Rated Power：
- 15.2/22.0 W
- Working Temperature：
- -10℃~+55℃
- Working Humidity：
- 30%~70%RH
- Speed：
- 2450/3100 RPM
- Air Flow：
- 15.0/23.0 CFM
- Noise Level：
- 48 dBA
- Protection Grade：
- IP54
- Life Span：
- 40000 h
- Weight：
- 323/441 g
- Connection Method：
- Lead Wire / Terminal/Terminal
- Safety Certification：
- 3C/CE/ROHS

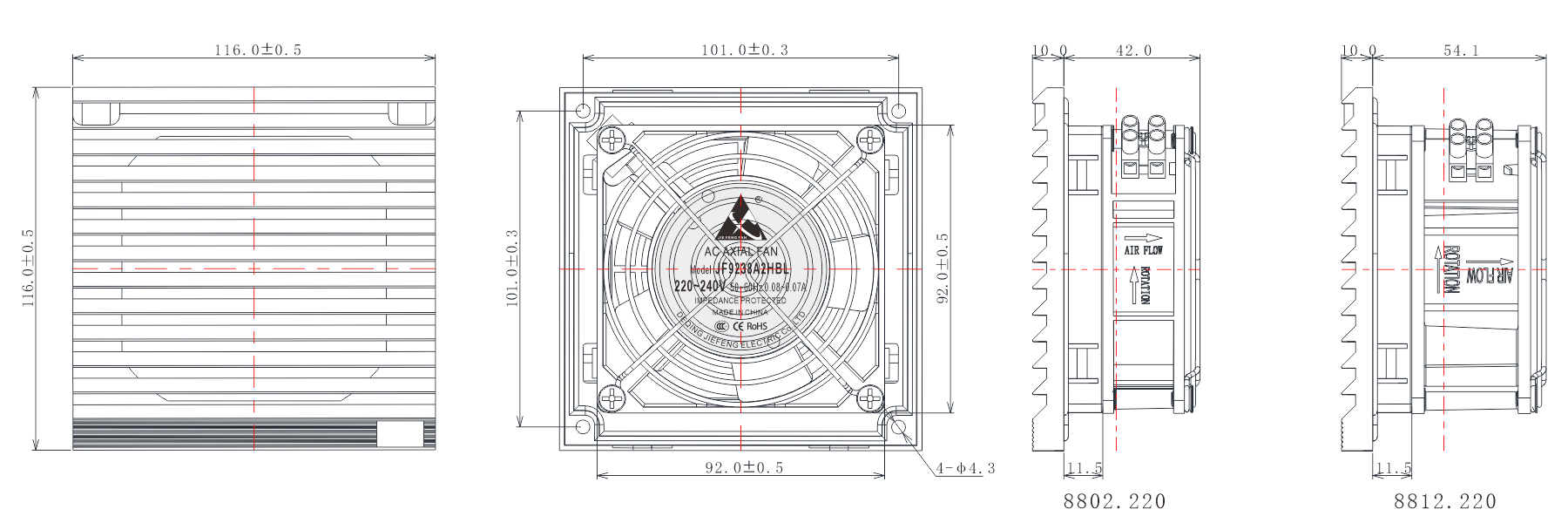

Product dimension drawing:
Unit: mm
Specification Table:
| Model | Voltage | Freq | Bearing | Current | Power | Speed | Airflow | Noise | |
| PART.NO. | VAC | Freq | Bearing | AMP | Watt | RPM | M³/min | CFM | dBA |
| JW8802.110 | 110 | 50/60 | BALL | 0.17/0.15 | 18.7/16.5 | 2450/3000 | 0.42/0.53 | 15.0/18.7 | 34/40 |
| JW8802.220 | 220 | 50/60 | BALL | 0.09/0.07 | 19.8/15.4 | 2450/3000 | 0.42/0.53 | 15.0/18.7 | 34/40 |
| JW8802.380 | 380 | 50/60 | BALL | 0.05/0.04 | 19.0/15.2 | 2450/3000 | 0.42/0.53 | 15.0/18.7 | 34/40 |
| JW8812.110 | 110 | 50/60 | BALL | 0.19/0.16 | 20.9/17.6 | 2700/3100 | 0.55/0.65 | 19.5/23.0 | 38/48 |
| JW8812.220 | 220 | 50/60 | BALL | 0.10/0.08 | 22.0/17.6 | 2700/3100 | 0.55/0.65 | 19.5/23.0 | 38/48 |
| JW8812.380 | 380 | 50/60 | BALL | 0.05/0.04 | 19.0/15.2 | 2700/3100 | 0.55/0.65 | 19.5/23.0 | 38/48 |
