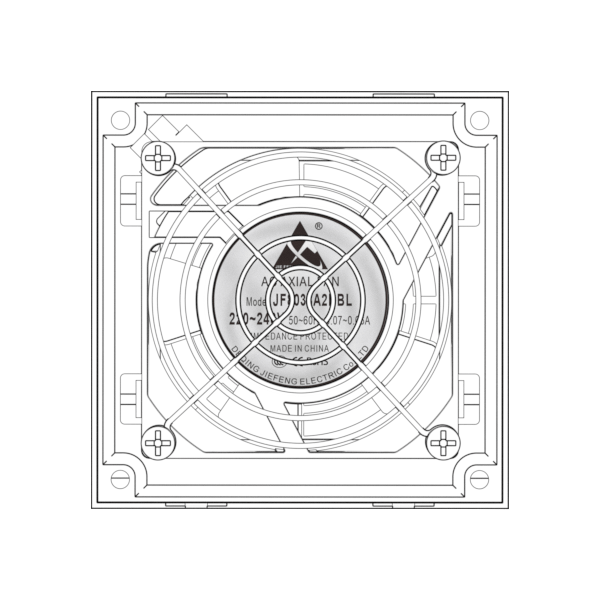

JW8801.220
JW8801.220 from Jiefeng Electric. AC Cabinet Filter Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM …
Product overview

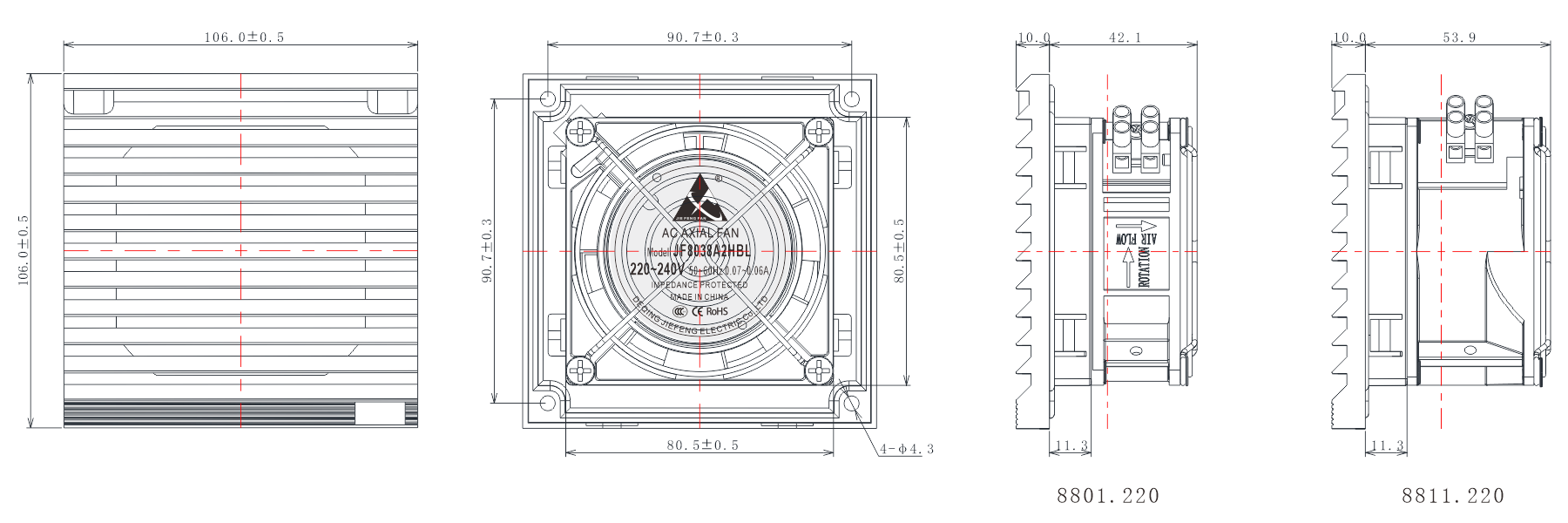

Product dimension drawing: Unit: mm Specification Table: Model Voltage Freq Bearing Current Power Speed Airflow Noise PART.NO. VAC Freq Bearing AMP Watt RPM M ³ /min CFM dBA JW8801.110 110 50/60 BALL 0.14/0.12 15.4/13.2 2400/2900 0.25/0.31 9.0/11.0 27/32 JW8801.220 220 50/60 BALL 0.08/0.07 17.6/15.4 2300/2800 0.25/0.31 9.0/11.0 27/32 JW8801.380 380 50/60 BALL 0.05/0.04 19.0/15.2 2400/2900 0.25/0.31 9.0/11.0 27/32 JW8811.110 110 50/60 BALL 0.17/0.15 18.7/16.5 2500/3000 0.33/0.4 11.5/14 30/35 JW8811.220 220 50/60 BALL 0.09/0.07 19.8/15.4 2500/3000 0.33/0.4 11.5/14 30/35 JW8811.380 380 50/60 BALL 0.05/0.04 19.0/15.2 2500/3000 0.33/0.4 11.5/14 30/35
Product specifications
- productType
- 过滤器
- brand
- JIEFENGFAN
- correspondingFan
- 8025,8038
- netCoverMaterial
- ABS
- netCoverColor
- RAL7032/RAL7035/RAL9005
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 5/7
- overallSize
- 106.0*106.0 MM
- mountingSize
- 90.7*90.7 MM
- mountingHoleDiameter
- Φ4.3
- Ventilation Opening Size
- 80.3*80.3 MM
- motorType
- 罩极电机
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V/220V/380V
- ratedPower
- 13.2/19.8 W
- workingTemperature
- -10℃~+55℃
- workingHumidity
- 30%~70%RH
- speed
- 2300/3000 RPM
- airFlow
- 9.0/14.0 CFM
- noiseLevel
- 35 dBA
- protectionGrade
- IP54
- lifeSpan
- 40000 h
- weight
- 306.3/344.3 g
- wiringMethod
- 引线/端子/插片
- safetyCertification
- 3C/CE/ROHS
