JW7701.24
Product Parameters:
- Brand：
- JIEFENGFAN
- Corresponding Fan：
- 175-70,190-75,220-80,225-105
- Guard Material：
- ABS
- Guard Color：
- RAL7032/RAL7035/RAL9005
- Impeller Material：
- Plastic PBT+28%GF
- Overall Size：
- 400.0*354.0*120.0 MM
- Mounting Size：
- φ264.0 EQ SP
- Mounting Hole Diameter：
- M4.0
- Ventilation Opening Size：
- 180.0*180.0 MM
- Motor Type：
- 无刷Motor
- Insulation Class：
- Class B
- Drive Type：
- Ball
- Power Type：
- DC
- Rated Voltage：
- 12V/24V/48V
- Rated Power：
- 36/182.4 W
- Working Temperature：
- -10℃~+55℃
- Working Humidity：
- 30%~70%RH
- Speed：
- 2500/2700 RPM
- Air Flow：
- 255.20/678.70 CFM
- Noise Level：
- 71 dBA
- Protection Grade：
- IP54
- Life Span：
- 40000 h
- Weight：
- 2.58/3.28 kg
- Connection Method：
- Lead Wire/Terminal/Terminal
- Safety Certification：
- 3C/CE/ROHS

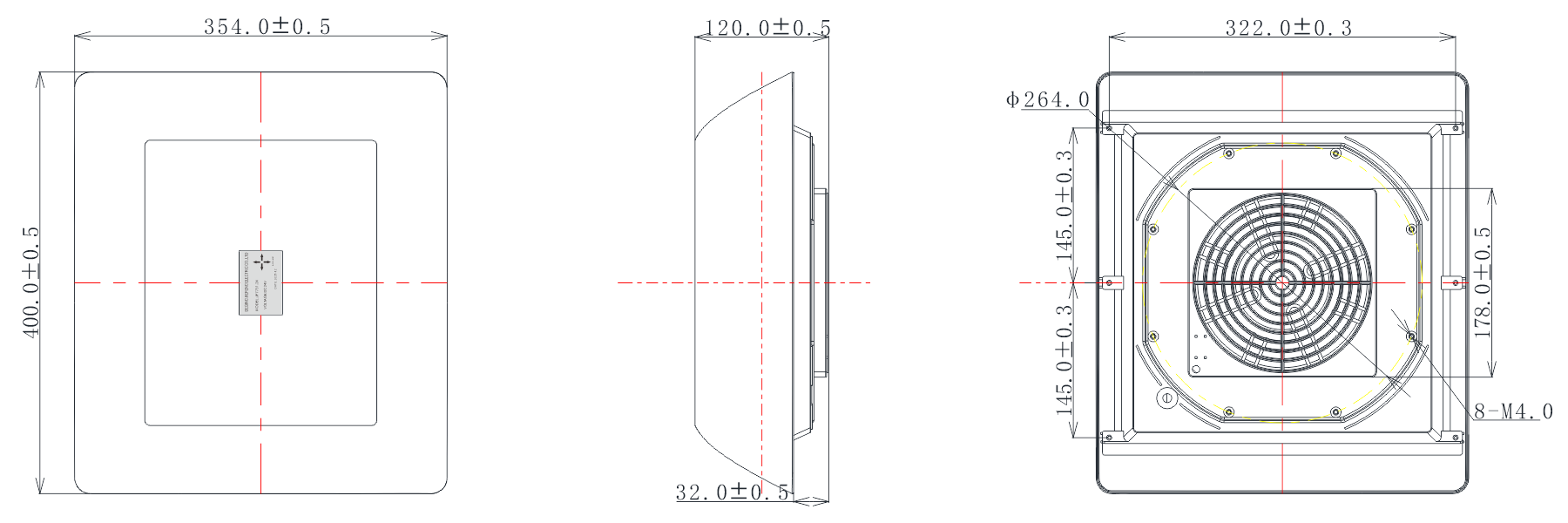

Product dimension drawing:
Unit: mm
Specification Table:
| Model | Voltage | Bearing | Current | Power | Speed | Airflow | Noise | |
| PART.NO. | VDC | Bearing | AMP | Watt | RPM | M³/min | CFM | dBA |
| JW7701.12 | 12 | BALL | 3.0 | 36 | 2500 | 7.54 | 266.35 | 57.2 |
| JW7701.24 | 24 | BALL | 1.5 | 36 | 2500 | 7.54 | 266.35 | 57.2 |
| JW7701.48 | 48 | BALL | 0.75 | 36 | 2500 | 7.54 | 266.35 | 57.2 |
| JW7711.24 | 24 | BALL | 2.10 | 50.4 | 2600 | 7.22 | 255.20 | 58.6 |
| JW7711.48 | 48 | BALL | 1.00 | 48.0 | 2600 | 7.22 | 255.20 | 58.6 |
| JW7721.24 | 24 | BALL | 3.54 | 85.0 | 2600 | 14.43 | 510.00 | 71.0 |
| JW7721.48 | 48 | BALL | 1.77 | 85.0 | 2600 | 14.43 | 510.00 | 71.0 |
| JW7731.24 | 24 | BALL | 7.00 | 168.0 | 2700 | 19.21 | 678.70 | 70.7 |
| JW7731.48 | 48 | BALL | 3.80 | 182.4 | 2700 | 19.21 | 678.70 | 70.7 |
