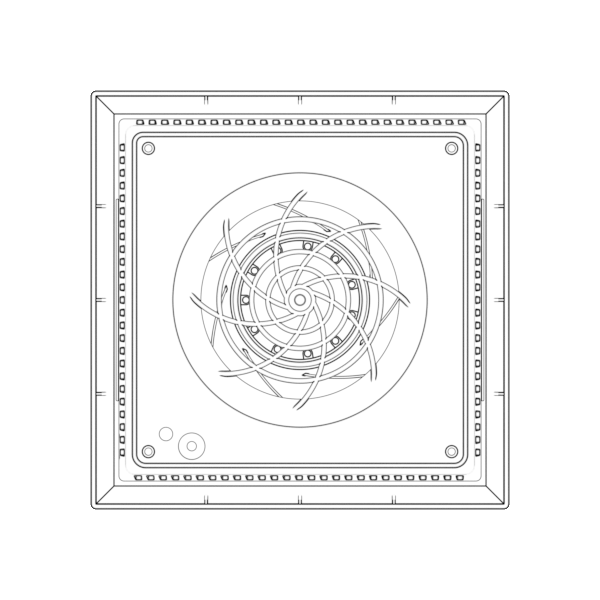

JW7702.220
JW7702.220 from Jiefeng Electric. AC Cabinet Filter Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM …
Product overview

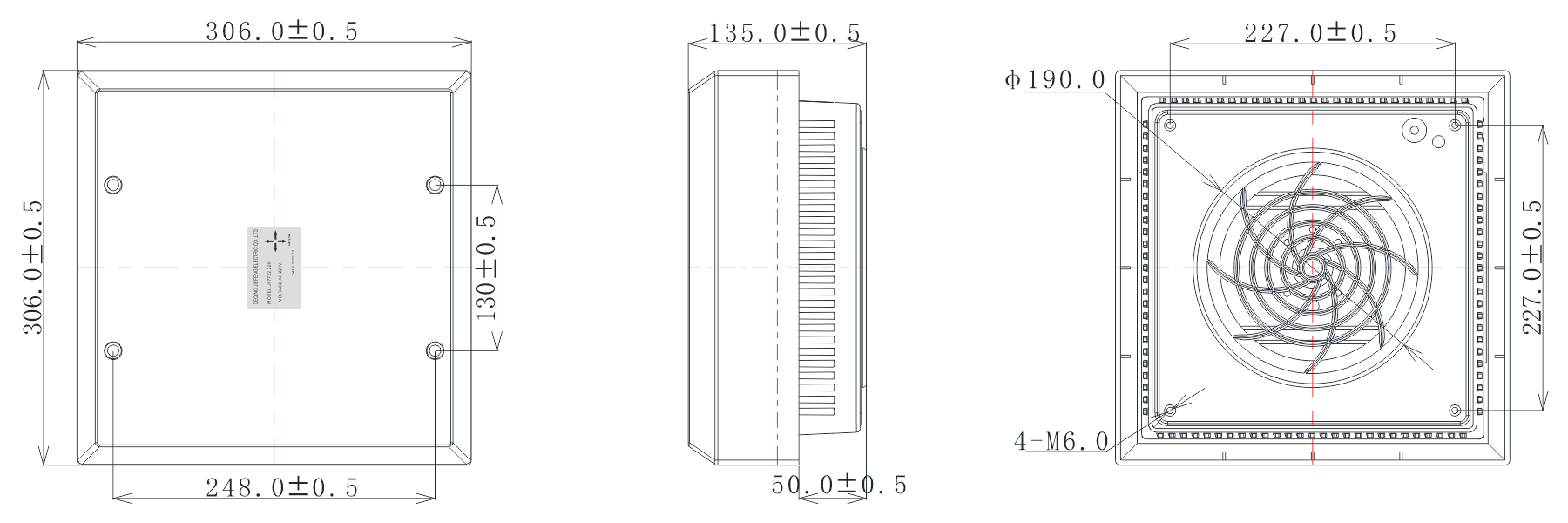

Product dimension drawing: Unit: mm Specification Table: Model Voltage Freq Bearing Current Power Speed Airflow Noise PART.NO. VAC Freq Bearing AMP Watt RPM M ³ /min CFM dBA JW7702.220 220 50 BALL 0.27 60 2500 8.98 317 65 JW7702.220 220 60 BALL 0.35 76 2700 9.91 350 68 JW7702.380 380 50 BALL 0.16 60 2500 8.98 317 65 JW7702.380 380 60 BALL 0.20 76 2700 9.91 350 68 JW7712.220 220 50 BALL 0.41 90 2500 15.15 535 70 JW7712.220 220 60 BALL 0.46 100 2700 16.14 570 72 JW7712.380 380 50 BALL 0.17 90 2500 15.15 535 70 JW7712.380 380 60 BALL 0.20 100 2700 16.14 570 72 JW7722.220 220 50 BALL 0.41 90 2500 15.15 535 70 JW7722.220 220 60 BALL 0.46 100 2700 16.14 570 73 JW7722.380 380 50 BALL 0.17 85 2500 15.15 535 70 JW7722.380 380 60 BALL 0.20 100 2700 16.14 570 73
Product specifications
- productType
- 过滤器
- brand
- JIEFENGFAN
- correspondingFan
- 190-63,220-65,225-90
- netCoverMaterial
- ABS
- netCoverColor
- RAL7032/RAL7035/RAL9005
- bladeMaterial
- 塑料 PBT+28%GF
- overallSize
- 306.0*306.0*135.0 MM
- mountingSize
- 227.0*227.0 MM
- mountingHoleDiameter
- M6.0
- Ventilation Opening Size
- φ190.0 MM
- motorType
- 感应异步外转子电机
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 交流
- ratedVoltage
- 110V/220V/380V
- ratedPower
- 60/100 W
- workingTemperature
- -10℃~+55℃
- workingHumidity
- 30%~70%RH
- speed
- 2500/2700 RPM
- airFlow
- 317/570 CFM
- noiseLevel
- 73 dBA
- protectionGrade
- IP54
- lifeSpan
- 40000 h
- weight
- 3.12/3.62 kg
- wiringMethod
- 引线/端子/插片
- safetyCertification
- 3C/CE/ROHS
