JW7701.220
Product Parameters:
- Brand：
- JIEFENGFAN
- Corresponding Fan：
- 190-63,220-65,225-90
- Guard Material：
- ABS
- Guard Color：
- RAL7032/RAL7035/RAL9005
- Impeller Material：
- Plastic PBT+28%GF
- Overall Size：
- 400.0*354.0*120.0 MM
- Mounting Size：
- φ264.0 EQ SP
- Mounting Hole Diameter：
- M4.0
- Ventilation Opening Size：
- 180.0*180.0 MM
- Motor Type：
- 感应异步External Rotor Motor
- Insulation Class：
- Class B
- Drive Type：
- Ball
- Power Type：
- AC
- Rated Voltage：
- 110V/220V/380V
- Rated Power：
- 60/100 W
- Working Temperature：
- -10℃~+55℃
- Working Humidity：
- 30%~70%RH
- Speed：
- 2500/2700 RPM
- Air Flow：
- 317/570 CFM
- Noise Level：
- 70 dBA
- Protection Grade：
- IP54
- Life Span：
- 40000 h
- Weight：
- 3.18/3.68 kg
- Connection Method：
- Lead Wire/Terminal/Terminal
- Safety Certification：
- 3C/CE/ROHS

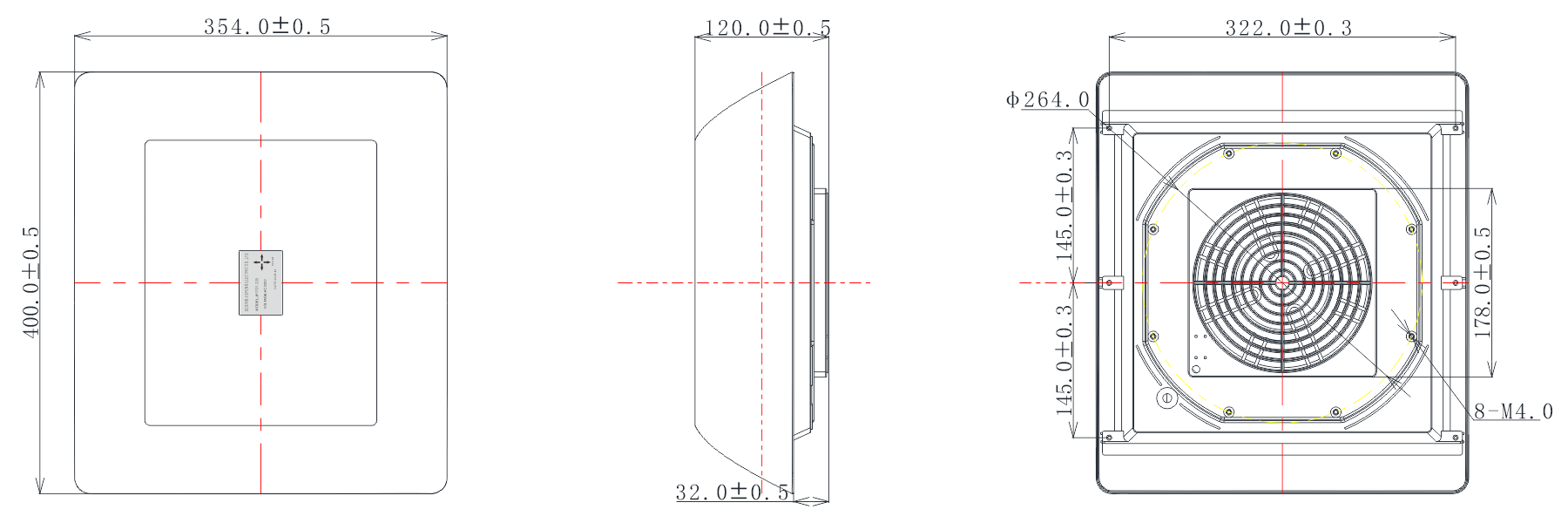

Product dimension drawing:
Unit: mm
Specification Table:
| Model | Voltage | Freq | Bearing | Current | Power | Speed | Airflow | Noise | |
| PART.NO. | VAC | Freq | Bearing | AMP | Watt | RPM | M³/min | CFM | dBA |
| JW7701.220 | 220 | 50 | BALL | 0.27 | 60 | 2500 | 8.98 | 317 | 65 |
| JW7701.220 | 220 | 60 | BALL | 0.35 | 76 | 2700 | 9.91 | 350 | 68 |
| JW7701.380 | 380 | 50 | BALL | 0.16 | 60 | 2500 | 8.98 | 317 | 65 |
| JW7701.380 | 380 | 60 | BALL | 0.20 | 76 | 2700 | 9.91 | 350 | 68 |
| JW7711.220 | 220 | 50 | BALL | 0.41 | 90 | 2500 | 15.15 | 535 | 70 |
| JW7711.220 | 220 | 60 | BALL | 0.46 | 100 | 2700 | 16.14 | 570 | 72 |
| JW7711.380 | 380 | 50 | BALL | 0.17 | 90 | 2500 | 15.15 | 535 | 70 |
| JW7711.380 | 380 | 60 | BALL | 0.20 | 100 | 2700 | 16.14 | 570 | 72 |
| JW7721.220 | 220 | 50 | BALL | 0.41 | 90 | 2500 | 15.15 | 535 | 70 |
| JW7721.220 | 220 | 60 | BALL | 0.46 | 100 | 2700 | 16.14 | 570 | 73 |
| JW7721.380 | 380 | 50 | BALL | 0.17 | 85 | 2500 | 15.15 | 535 | 70 |
| JW7721.380 | 380 | 60 | BALL | 0.20 | 100 | 2700 | 16.14 | 570 | 73 |
