JW6608.24
Product Parameters:
- Brand：
- JIEFENGFAN
- Corresponding Fan：
- 28080
- Guard Material：
- ABS
- Guard Color：
- RAL7032/RAL7035/RAL9005
- Impeller Material：
- Plastic PBT+28%GF
- Blade Quantity：
- 7
- Overall Size：
- 324.0*324.0 MM
- Ventilation Opening Size：
- 291.0*291.0 MM
- Motor Type：
- 无刷Motor
- Insulation Class：
- Class B
- Drive Type：
- Ball
- Power Type：
- DC
- Rated Voltage：
- 12V/24V/48V
- Rated Power：
- 129.6 W
- Working Temperature：
- -10℃~+55℃
- Working Humidity：
- 30%~70%RH
- Speed：
- 2800 RPM
- Air Flow：
- 580.21 CFM
- Noise Level：
- 71.3 dBA
- Protection Grade：
- IP54
- Life Span：
- 40000 h
- Weight：
- 3118.3 g
- Connection Method：
- Lead Wire/Terminal/Terminal
- Safety Certification：
- 3C/CE/ROHS

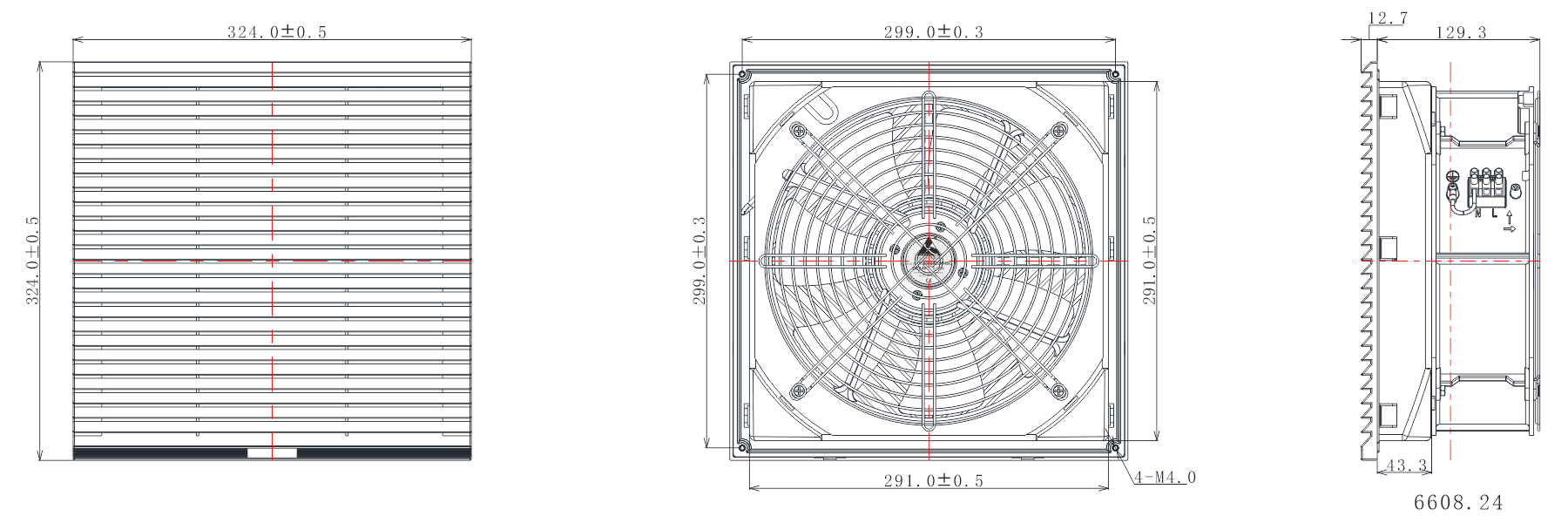

Product dimension drawing:
Unit: mm
Specification Table:
| Model | Voltage | Bearing | Current | Power | Speed | Airflow | Noise | |
| PART.NO. | VDC | Bearing | AMP | Watt | RPM | M³/min | CFM | dBA |
| JW6608.12 | 12 | BALL | 10.80 | 129.60 | 2800 | 16.43 | 580.21 | 71.3 |
| JW6608.24 | 24 | BALL | 5.40 | 129.60 | 2800 | 16.43 | 580.21 | 71.3 |
| JW6608.48 | 48 | BALL | 2.70 | 129.60 | 2800 | 16.43 | 580.21 | 71.3 |
