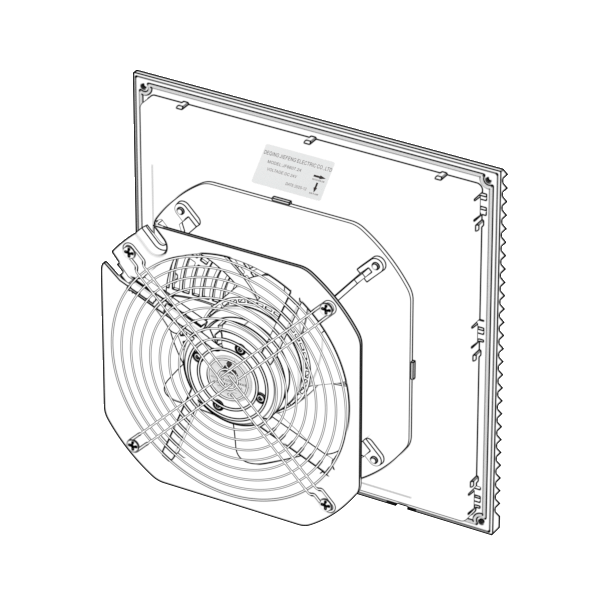

JW6607.24
Product Parameters:
- Brand：
- JIEFENGFAN
- Corresponding Fan：
- 22580
- Guard Material：
- ABS
- Guard Color：
- RAL7032/RAL7035/RAL9005
- Impeller Material：
- Plastic PBT+28%GF
- Blade Quantity：
- 7
- Overall Size：
- 324.0*324.0 MM
- Ventilation Opening Size：
- 291.0*291.0 MM
- Motor Type：
- Brushless Motor
- Insulation Class：
- Class B
- Drive Type：
- Ball Bearing
- Power Type：
- DC
- Rated Voltage：
- 12V/24V/48V
- Rated Power：
- 48 W
- Working Temperature：
- -10℃~+55℃
- Working Humidity：
- 30%~70%RH
- Speed：
- 2700 RPM
- Air Flow：
- 339.35 CFM
- Noise Level：
- 66.9 dBA
- Protection Grade：
- IP54
- Life Span：
- 40000 h
- Weight：
- 2548.1 g
- Connection Method：
- Lead Wire / Terminal/Terminal
- Safety Certification：
- 3C/CE/ROHS
Product dimension drawing:
Unit: mm
Specification Table:
| Model | Voltage | Bearing | Current | Power | Speed | Airflow | Noise | |
| PART.NO. | VDC | Bearing | AMP | Watt | RPM | M³/min | CFM | dBA |
| JW6607.12 | 12 | BALL | 4.00 | 48.00 | 2700 | 9.61 | 339.35 | 66.9 |
| JW6607.24 | 24 | BALL | 2.00 | 48.00 | 2700 | 9.61 | 339.35 | 66.9 |
| JW6607.48 | 48 | BALL | 1.00 | 48.00 | 2700 | 9.61 | 339.35 | 66.9 |
