JW6606.24
JW6606.24 from Jiefeng Electric. DC Cabinet Filter Fan for electrical cabinets, automation equipment, power supplies, servers and ventilation cooling applications. OEM a…
Product overview

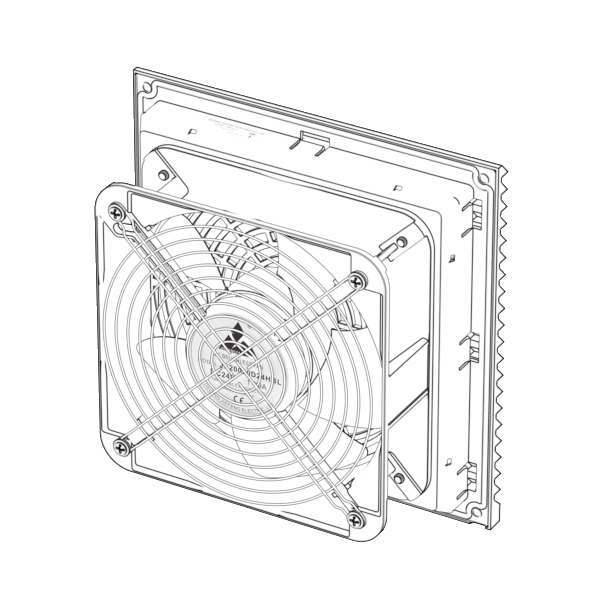

Product dimension drawing: Unit: mm Specification Table: Model Voltage Bearing Current Power Speed Airflow Noise PART.NO. VDC Bearing AMP Watt RPM M ³ /min CFM dBA JW6606.12 12 BALL 2.92 35.04 2500 7.27 256.70 60.0 JW6606.24 24 BALL 1.39 33.36 2500 7.27 256.70 60.0 JW6606.48 48 BALL 0.66 31.68 2500 7.27 256.70 60.0
Product specifications
- productType
- 过滤器
- brand
- JIEFENGFAN
- correspondingFan
- 20060
- netCoverMaterial
- ABS
- netCoverColor
- RAL7032/RAL7035/RAL9005
- bladeMaterial
- 塑料 PBT+28%GF
- bladeCount
- 5
- overallSize
- 255.0*255.0 MM
- Ventilation Opening Size
- 222.0*222.0 MM
- motorType
- 无刷电机
- insulationClass
- B级
- driveType
- 滚珠
- powerType
- 直流
- ratedVoltage
- 12V/24V/48V
- ratedPower
- 31.68/35.04 W
- workingTemperature
- -10℃~+55℃
- workingHumidity
- 30%~70%RH
- speed
- 2500 RPM
- airFlow
- 256.7 CFM
- noiseLevel
- 60 dBA
- protectionGrade
- IP54
- lifeSpan
- 40000 h
- weight
- 1487.2 g
- wiringMethod
- 引线/端子/插片
- safetyCertification
- 3C/CE/ROHS
