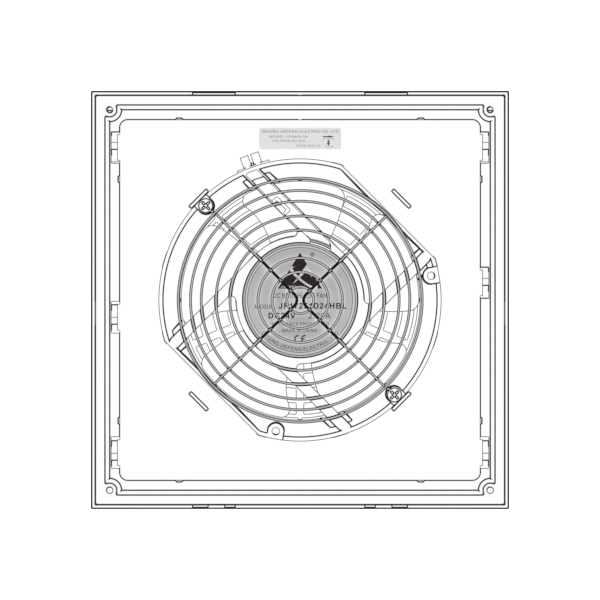

JW6605.24
Product Parameters:
- Brand：
- JIEFENGFAN
- Corresponding Fan：
- 17251
- Guard Material：
- ABS
- Guard Color：
- RAL7032/RAL7035/RAL9005
- Impeller Material：
- Plastic PBT+28%GF
- Blade Quantity：
- 5
- Overall Size：
- 255.0*255.0 MM
- Ventilation Opening Size：
- 223.0*223.0 MM
- Motor Type：
- 无刷Motor
- Insulation Class：
- Class B
- Drive Type：
- Ball
- Power Type：
- DC
- Rated Voltage：
- 12V/24V/48V
- Rated Power：
- 28.8 W
- Working Temperature：
- -10℃~+55℃
- Working Humidity：
- 30%~70%RH
- Speed：
- 3000 RPM
- Air Flow：
- 104.7 CFM
- Noise Level：
- 58.3 dBA
- Protection Grade：
- IP54
- Life Span：
- 40000 h
- Weight：
- 996.1 g
- Connection Method：
- Lead Wire/Terminal/Terminal
- Safety Certification：
- 3C/CE/ROHS

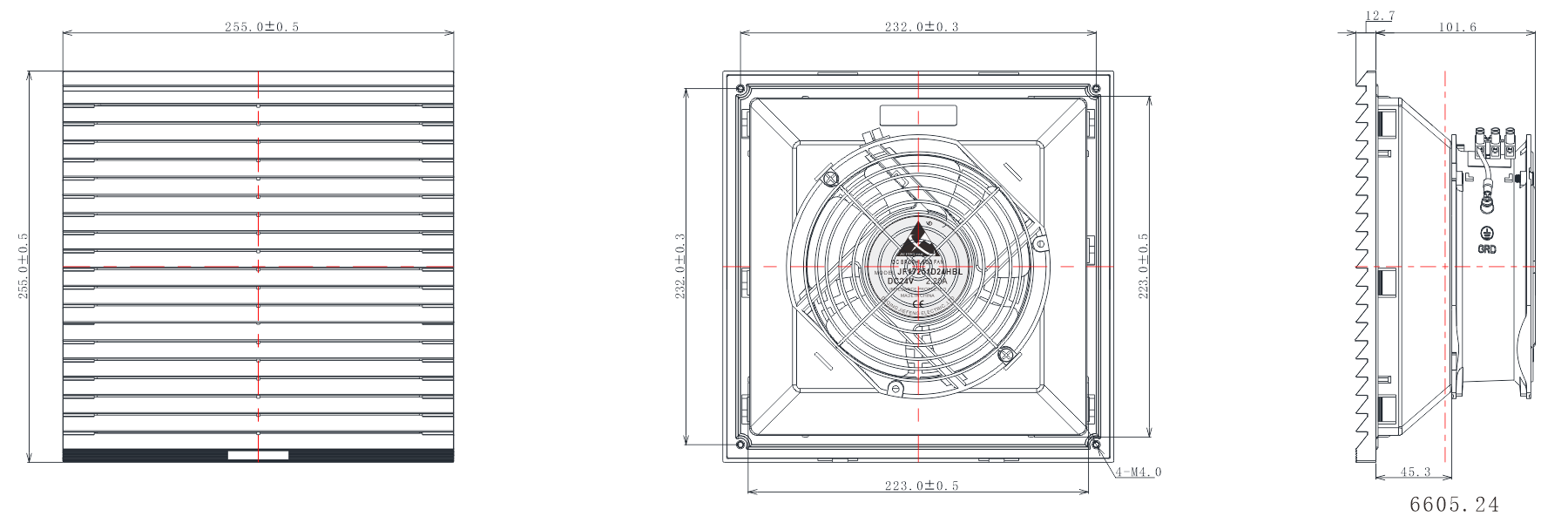

Product dimension drawing:
Unit: mm
Specification Table:
| Model | Voltage | Bearing | Current | Power | Speed | Airflow | Noise | |
| PART.NO. | VDC | Bearing | AMP | Watt | RPM | M³/min | CFM | dBA |
| JW6605.12 | 12 | BALL | 2.40 | 28.80 | 3000 | 2.96 | 104.70 | 58.3 |
| JW6605.24 | 24 | BALL | 1.20 | 28.80 | 3000 | 2.96 | 104.70 | 58.3 |
| JW6605.48 | 48 | BALL | 0.60 | 28.80 | 3000 | 2.96 | 104.70 | 58.3 |
